HT9898

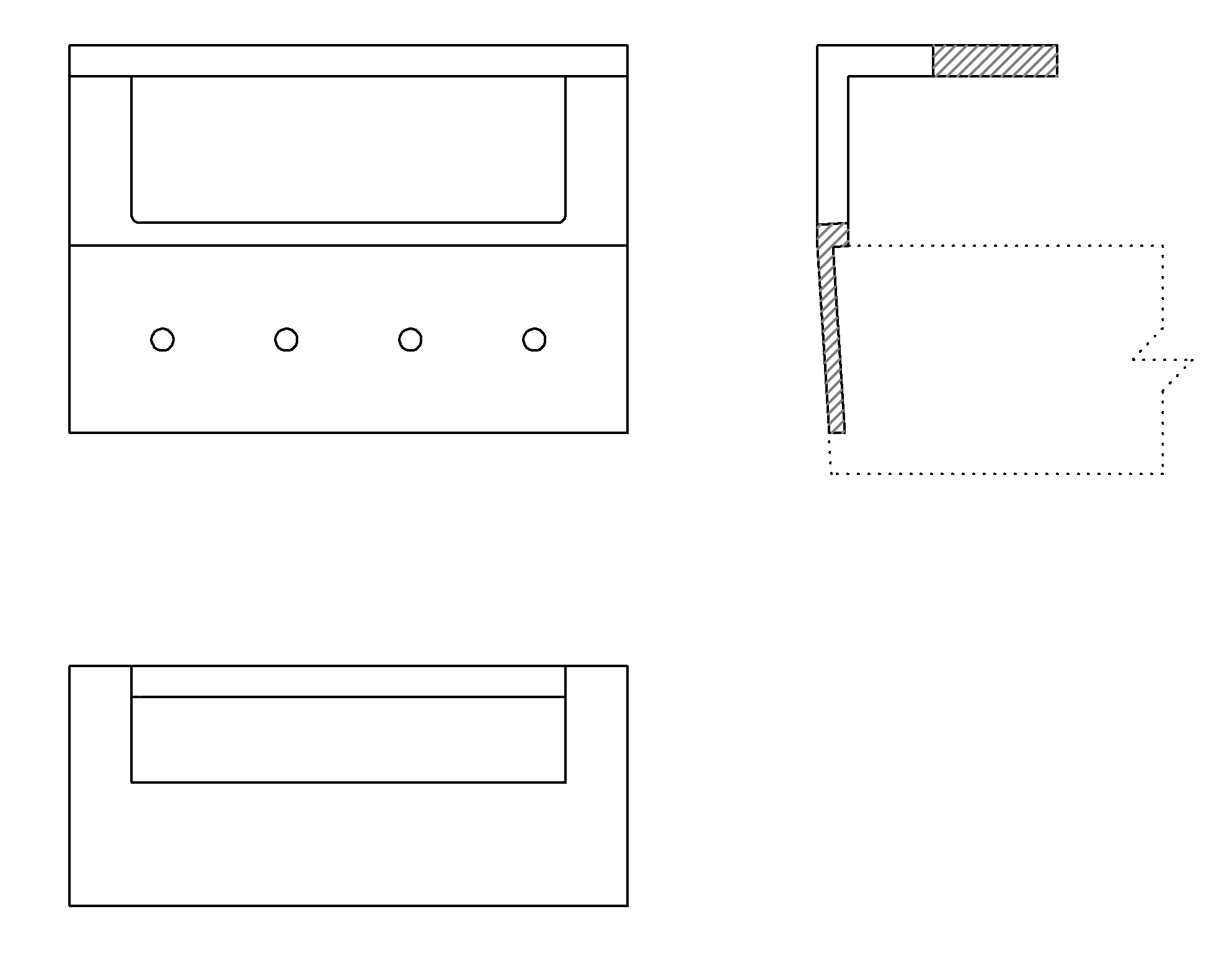

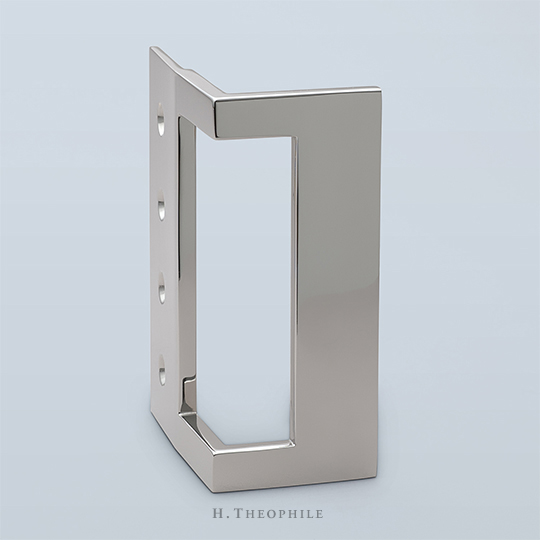

◀ Back to CatalogThe HT9898 is an L-shaped edge pull with a cutout window. The piece is mortised flush into the edge of the door or drawer and is available in a range of sizes to suit various door and cabinetry applications. Also available with a bevel; please specify.
Available in all finishes.
| LENGTH | WIDTH | PROJECTION | FULL DEPTH |
|---|---|---|---|
| 3" | 1-1/2" | 1" | 1-3/4" |
| 4-1/2" | 1-15/16" | 1-5/8" | 3-1/8" |
| 5" | 1-1/2" | 1" | 2-1/2" |
