HT9402

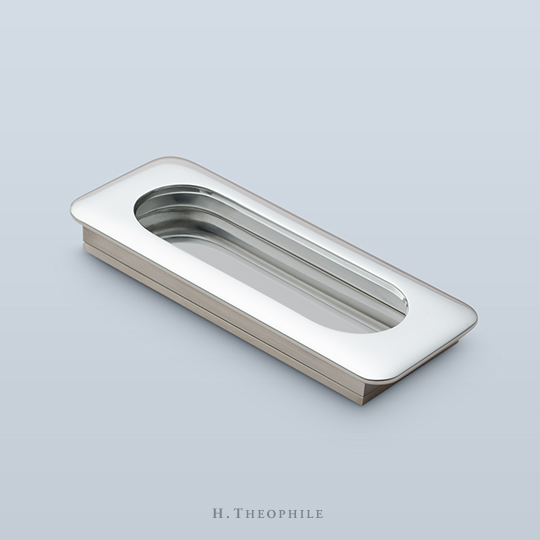

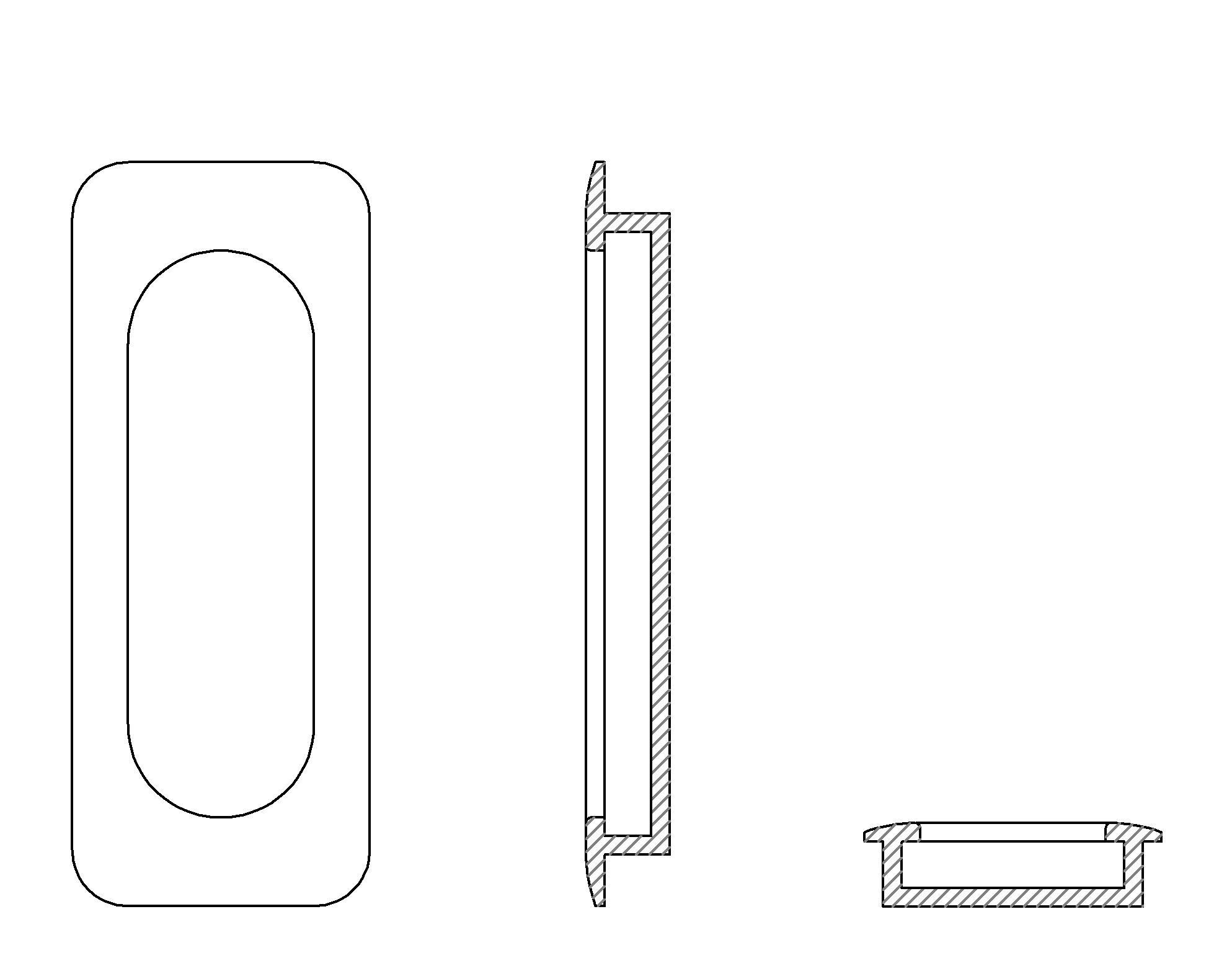

◀ Back to CatalogThe HT9402 recessed pull is based on an antique sash lift and uses a slightly pillowed face and radial corners to achieve its elegant softness. This pull can be used on sliding or swing doors and can be adapted for privacy and keyed functions; specify when ordering. A minimal box depth (mortised depth behind face frame) is shown; other depths are also available.
Available in all finishes.
| LENGTH | WIDTH | PROJECTION | BOX DEPTH |
|---|---|---|---|
| 4" | 1-1/2" | 1/8" | 7/16" |
| 5" | 2" | 1/8" | 7/16" |
| 7" | 2-1/2" | 1/8" | 7/16" |
