HT9923

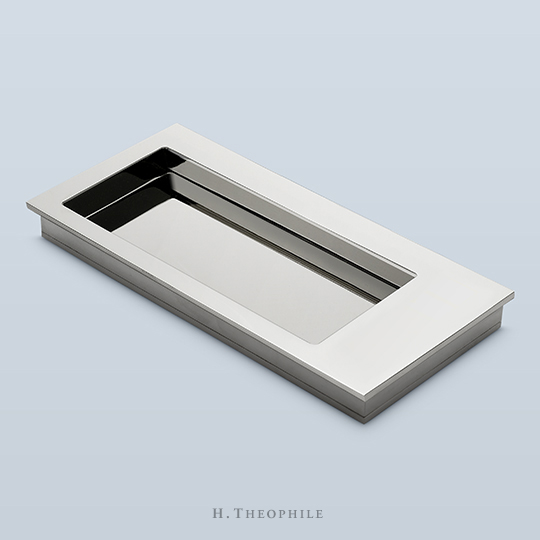

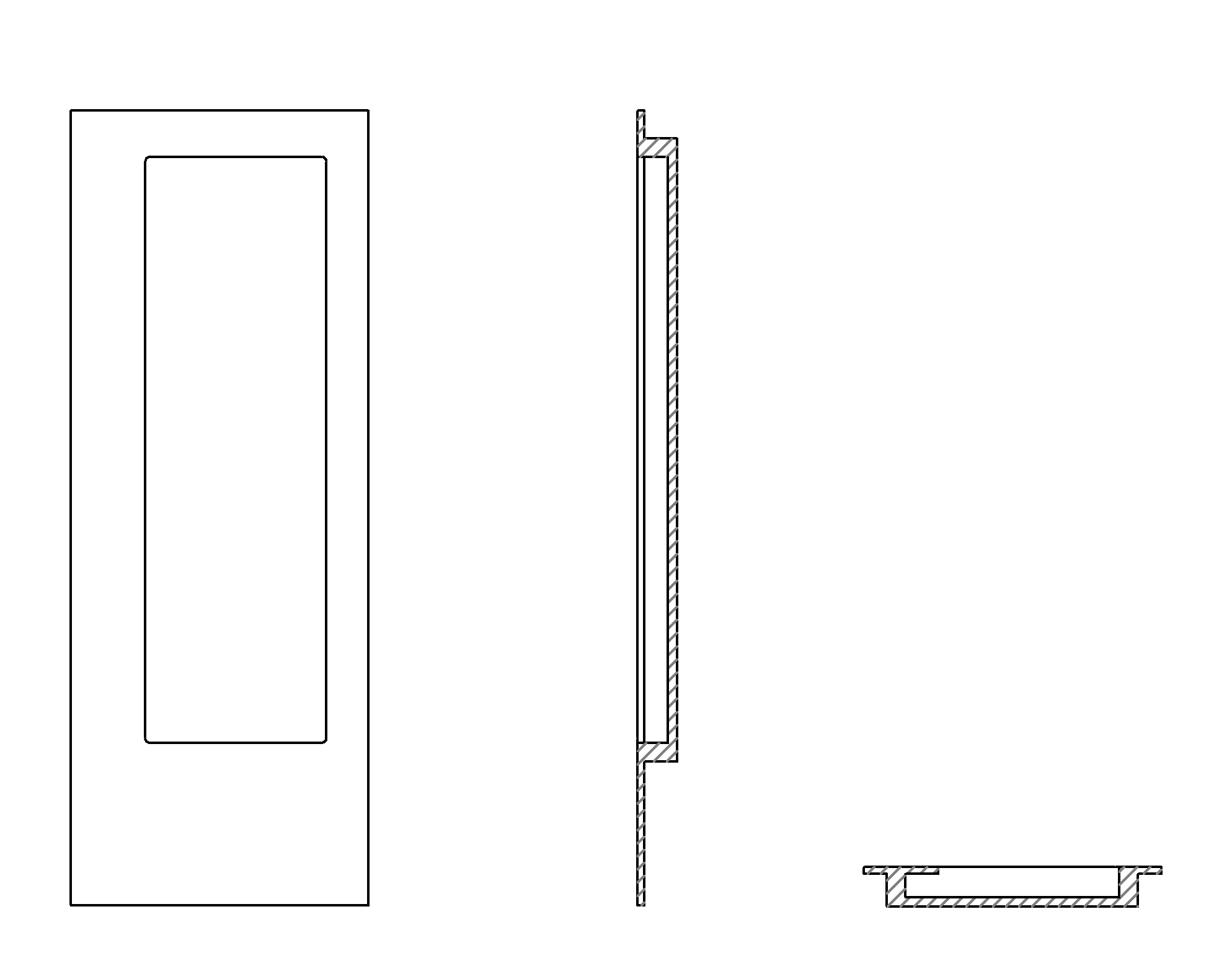

◀ Back to CatalogThe HT9923 recessed pull is machined from solid brass and features a two-way offset window. This pull can be used on sliding or swing doors and can be adapted for privacy and keyed functions; specify when ordering. A minimal box depth (mortised depth behind face frame) is shown; other depths are also available.
Available in all finishes.
| LENGTH | WIDTH | PROJECTION | BOX DEPTH |
|---|---|---|---|
| 10-11/16" | 4" | 1/8" | 7/16" |
| 12" | 5-7/16" | 1/8" | 7/16" |
| 20" | 4-1/4" | 1/8" | 7/16" |
