HT0243c-HT2511

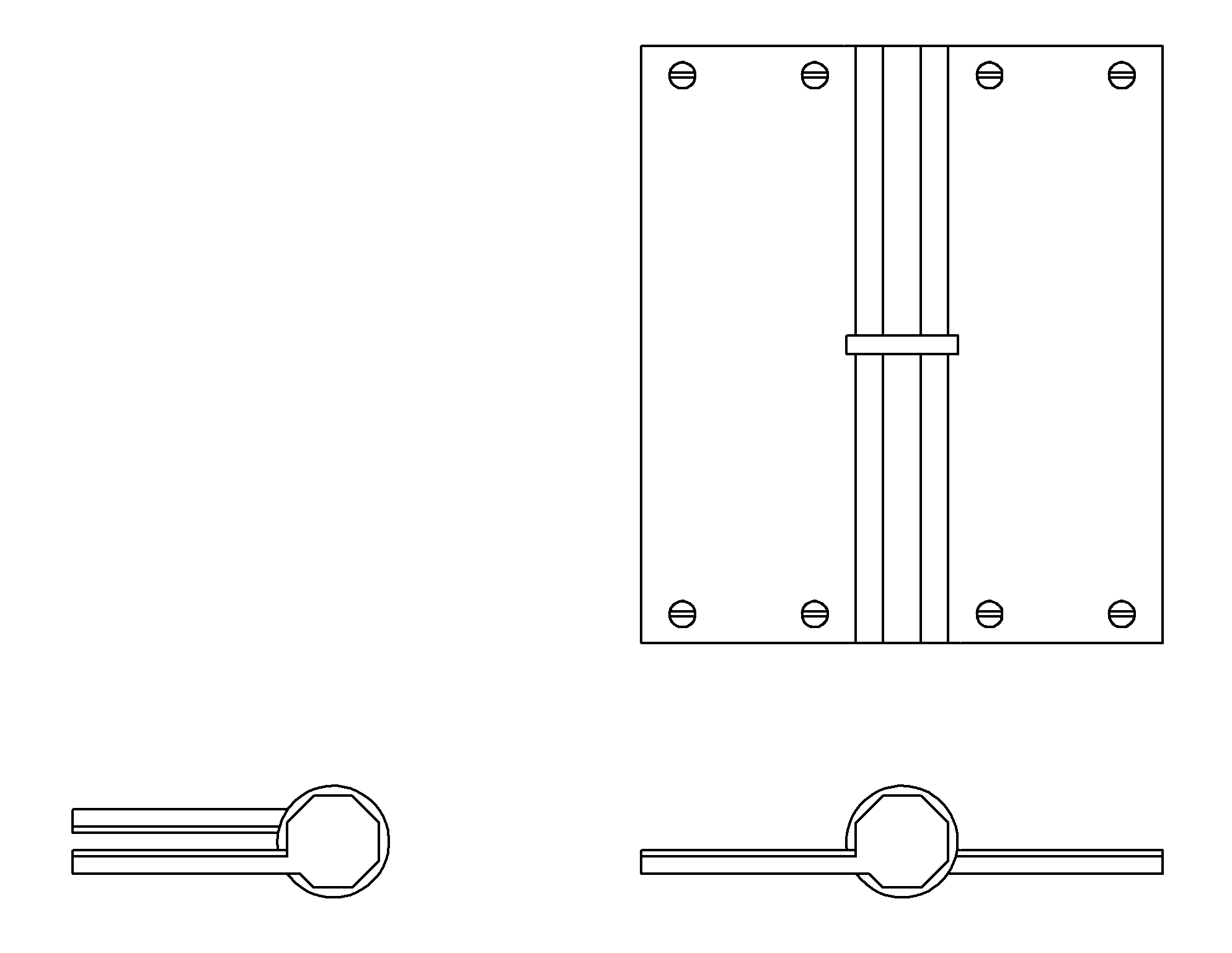

◀ Back to CatalogThe HT0243c octagonal paumelle is a premium lift-off hinge with cover plates and an elegant, minimalist screw pattern. This hinge incorporates a fixed stainless steel pin and concealed bearing. Shown here with flat washer HT2511. Other washer designs are also available.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 4" | 3.156" | .621" | .121" |
