HT0404-HT0901

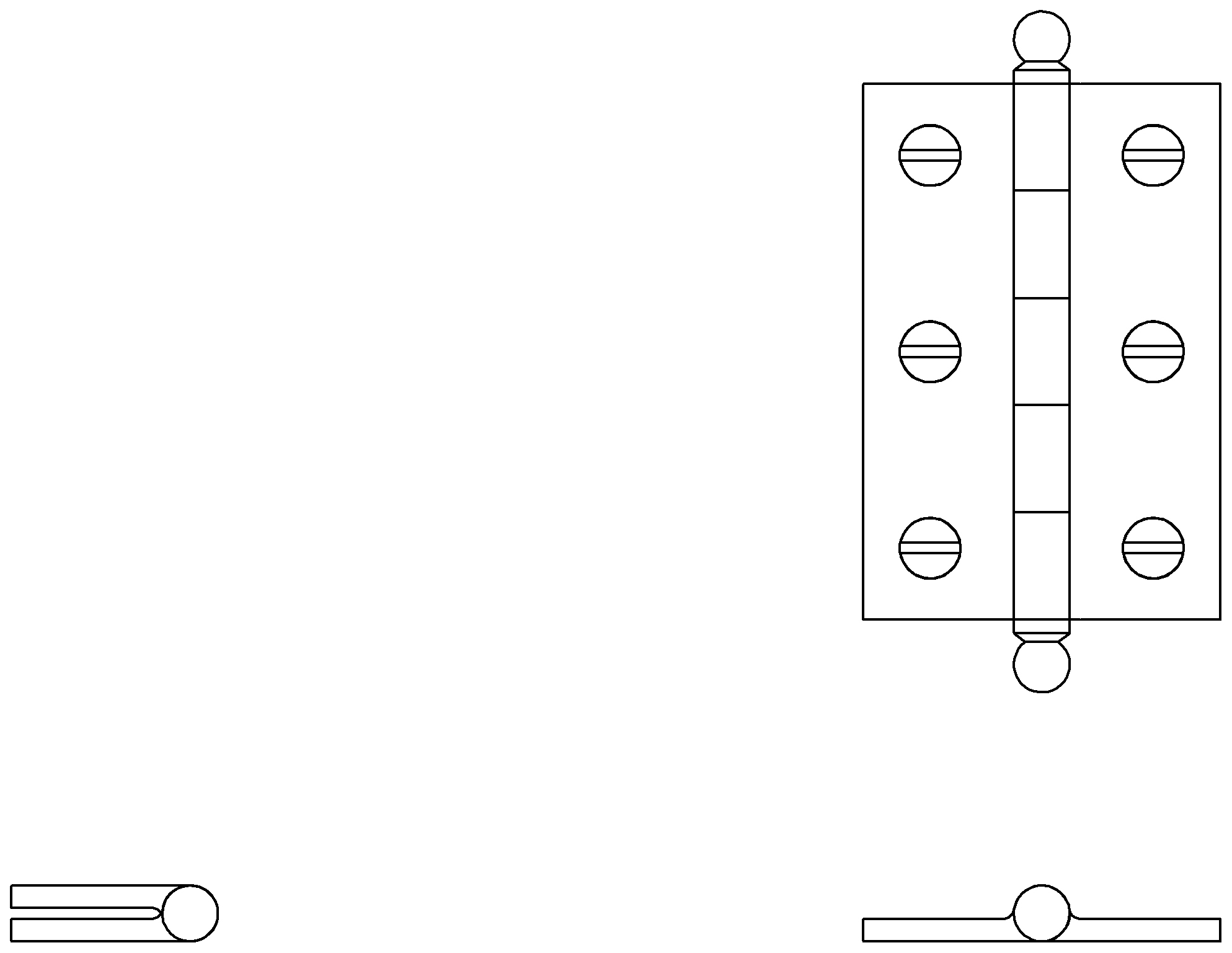

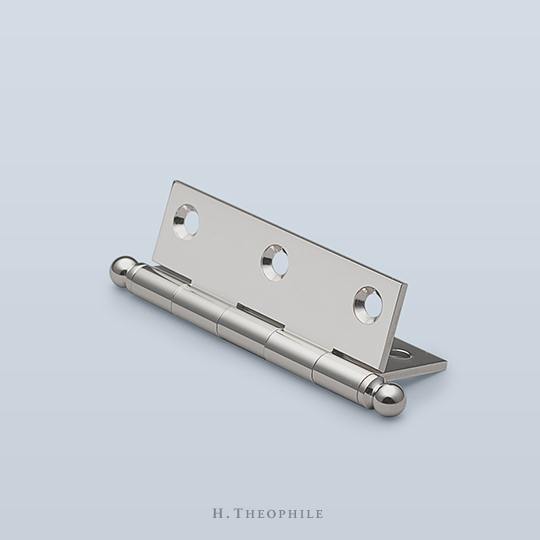

◀ Back to CatalogThe HT0404 is a premium cabinet butt hinge manufactured from solid brass extrusion. Shown with HT0901 ball finial. Other finial designs are also available.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 1-1/2" | 1-1/2" | 5/16" | .082" |
| 2" | 1-1/2" | 5/16" | .082" |
| 2" | 1-3/4" | 5/16" | .09" |
| 2" | 2" | 5/16" | .09" |
| 2-1/2" | 1-3/4" | 5/16" | .09" |
| 2-1/2" | 2" | 5/16" | .09" |
| 2-1/2" | 2-1/2" | 5/16" | .092" |
| 3" | 2" | 5/16" | .09" |
| 3" | 2-1/2" | 5/16" | .092" |
| 3" | 3" | 3/8" | .092" |
