HT0411-HT0910

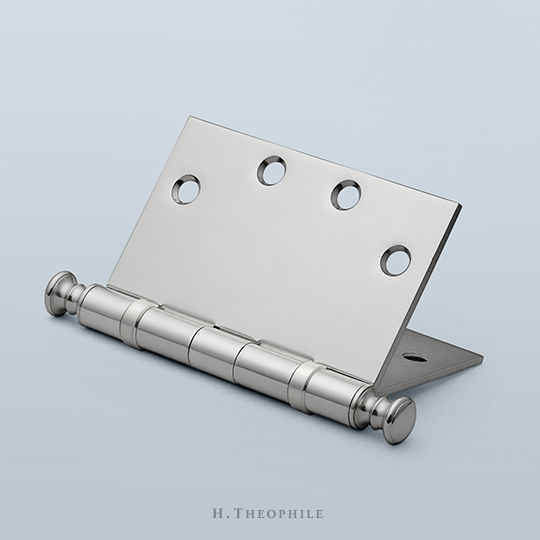

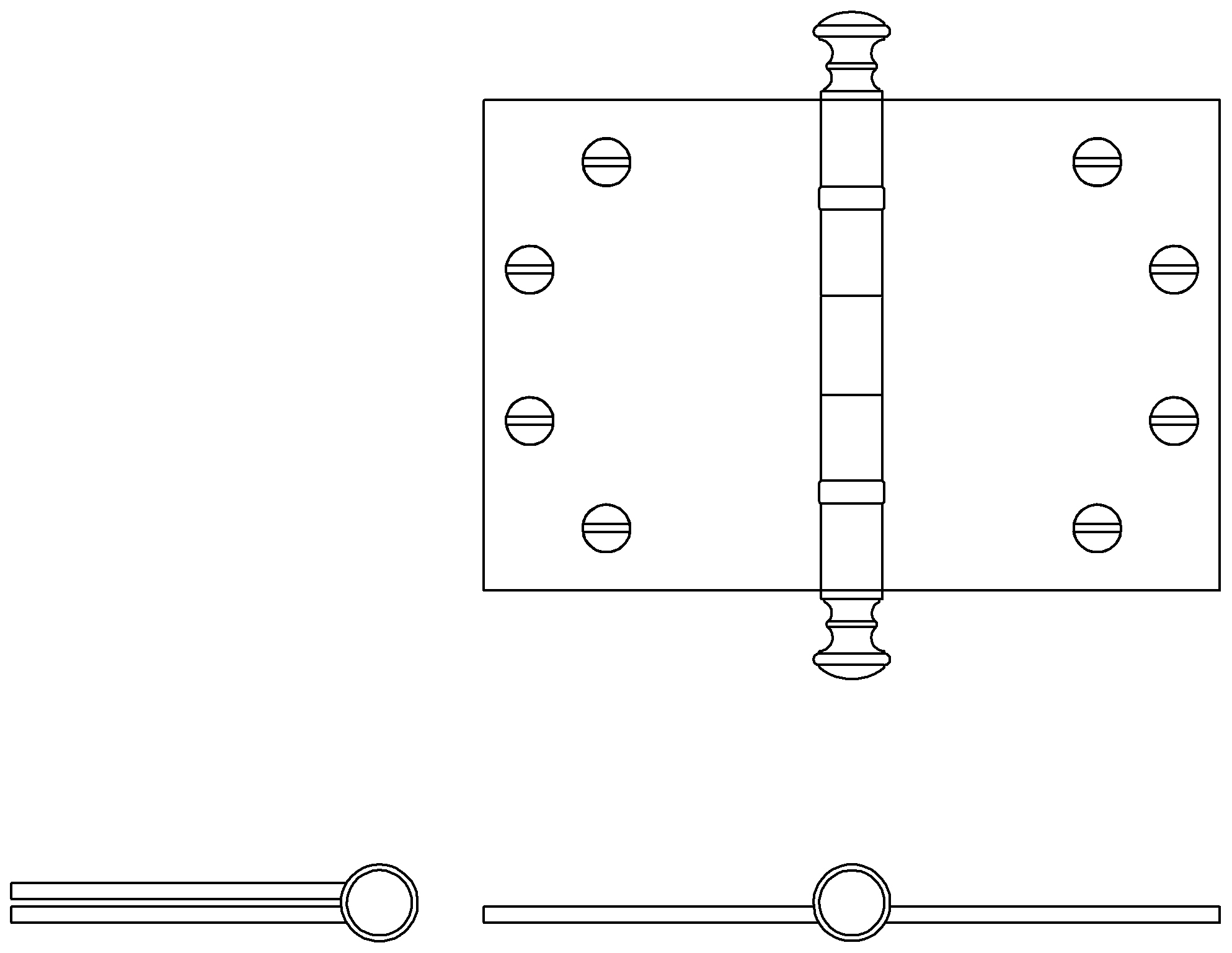

◀ Back to CatalogThe HT0411 is a premium wide-throw, two ball-bearing butt hinge. Shown here with HT0910 barrel finials and two HT2519 flat, raised bearings which are widely-spaced (by special request only). Other sizes, finials, and bearing designs are available.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 4" | 5" | 1/2" | .13" |
| 4" | 6" | 1/2" | .13" |
| 4" | 7" | 1/2" | .13" |
| 4" | 8" | 1/2" | .13" |
| 4-1/2" | 5" | 9/16" | .135" |
| 4-1/2" | 6" | 9/16" | .135" |
| 4-1/2" | 7" | 9/16" | .135" |
| 4-1/2" | 8" | 9/16" | .135" |
