HT0525

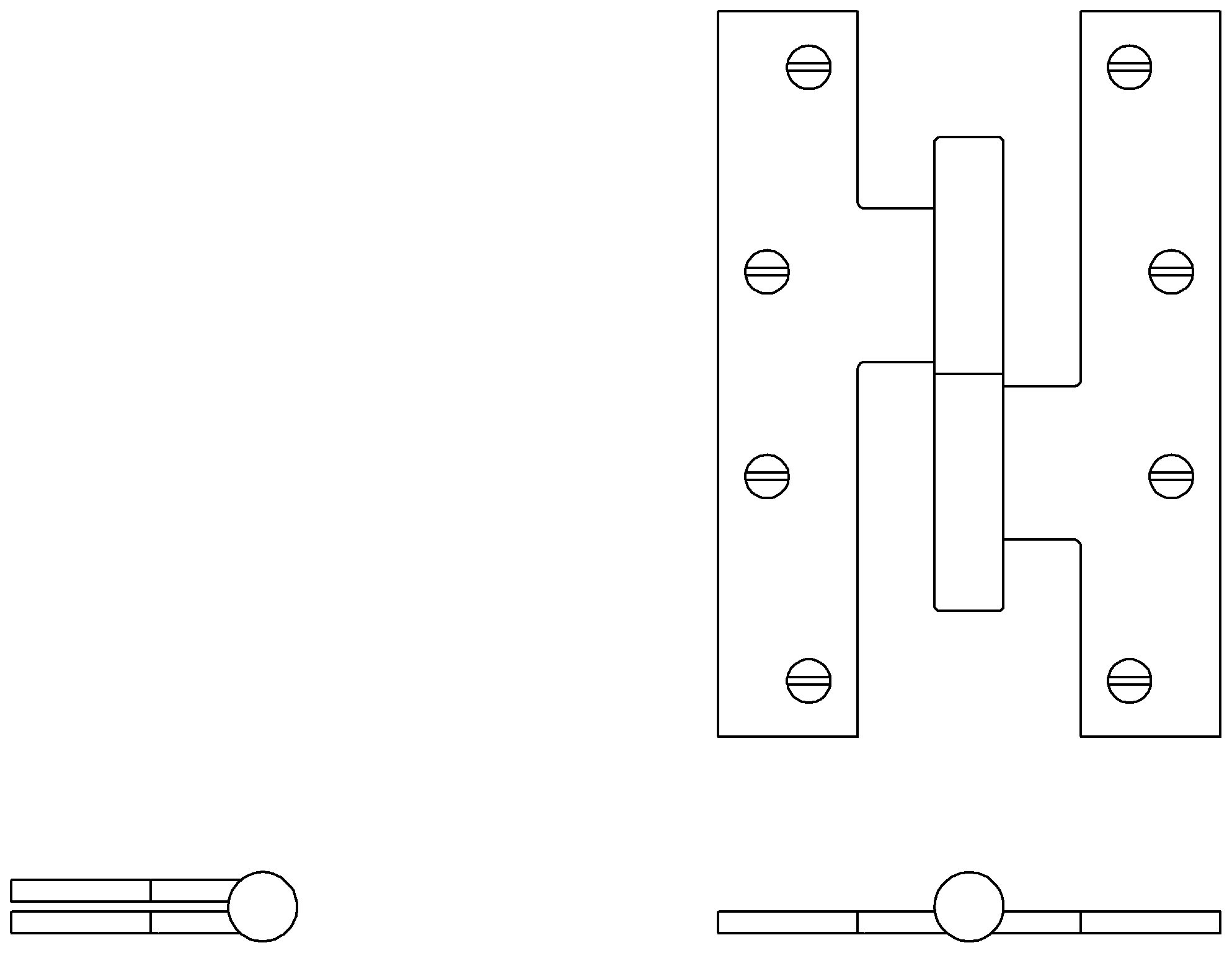

◀ Back to CatalogThe HT0525 H-hinge is a premium round paumelle manufactured from solid brass extrusion with a fixed stainless steel pin and concealed bearing. The leaf's staggered screw pattern is recommended for heavier doors.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 6" | 3-3/4" | 5/8" | .208" |
| 6-1/2" | 4" | 5/8" | .208" |
| 6-1/2" | 4-1/2" | 5/8" | .208" |

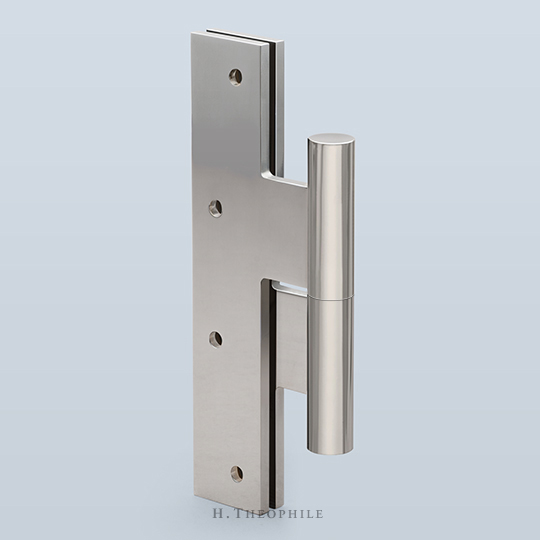

![[OLD HT0101] Round H-hinge](https://content.production.htheophile.com/jpg/HT0525.jpg)
