HT0713

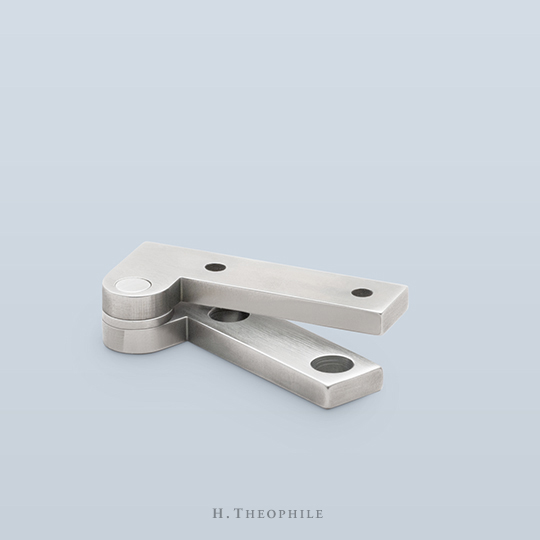

◀ Back to CatalogThe HT0713 offset pivot cabinet hinge is offered in a variety of sizes to accommodate various cabinetry applications and conditions including door weight. This pivot hinge comes standard with a flat washer, finished to match.
Available in all finishes.

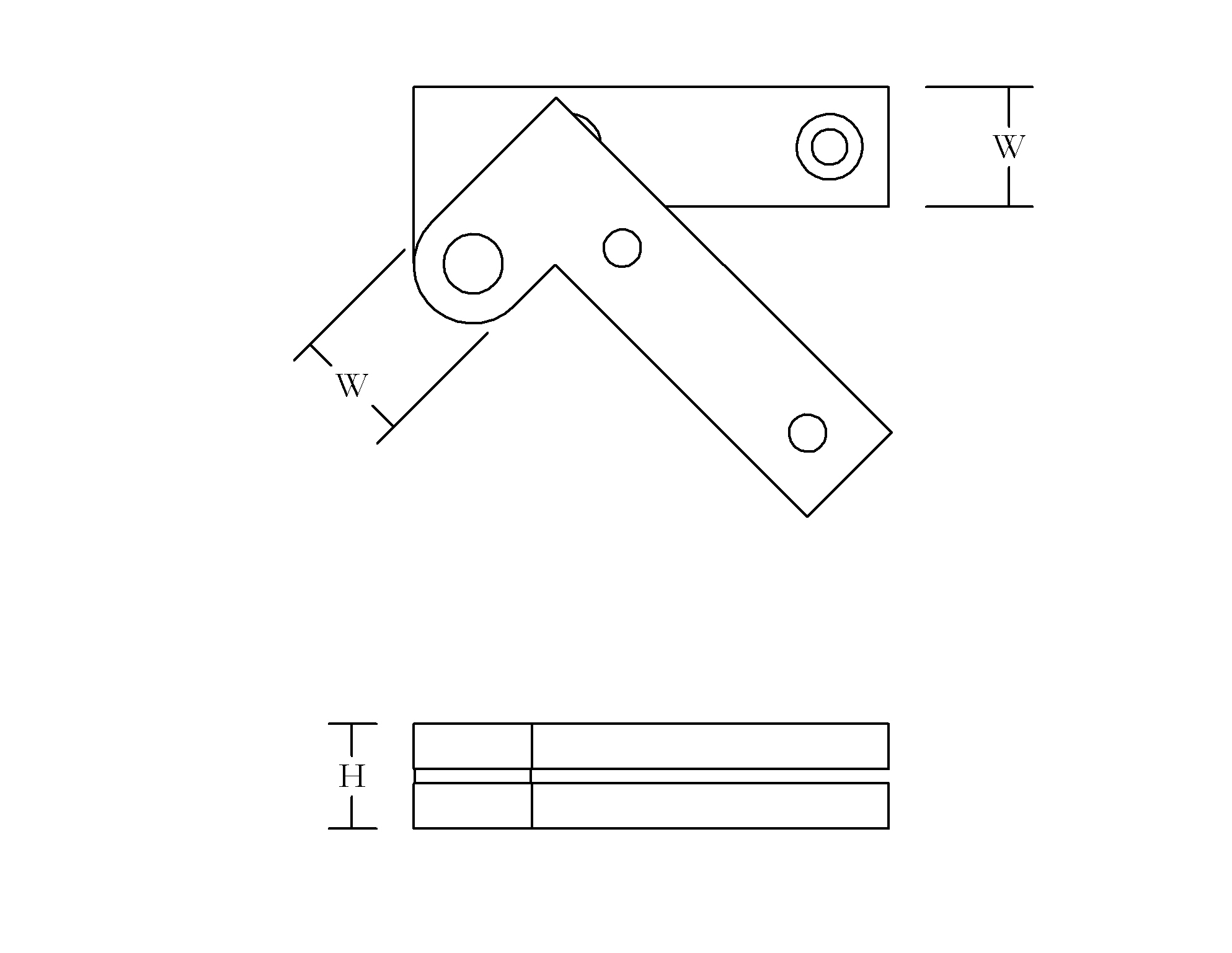

| WIDTH | HEIGHT | LENGTH | GAUGE |
|---|---|---|---|
| 5/16" | 5/16" | 1-3/8" | 1/8" |
| 3/8" | 5/16" | 1-3/4" | 1/8" |
| 1/2" | 7/16" | 2" | 3/16" |
| 5/8" | 5/8" | 2-1/2" | 1/4" |
| 3/4" | 3/4" | 3-1/4" | 5/16" |
| 3/4" | 13/16" | 5" | 3/8" |
