HT0211

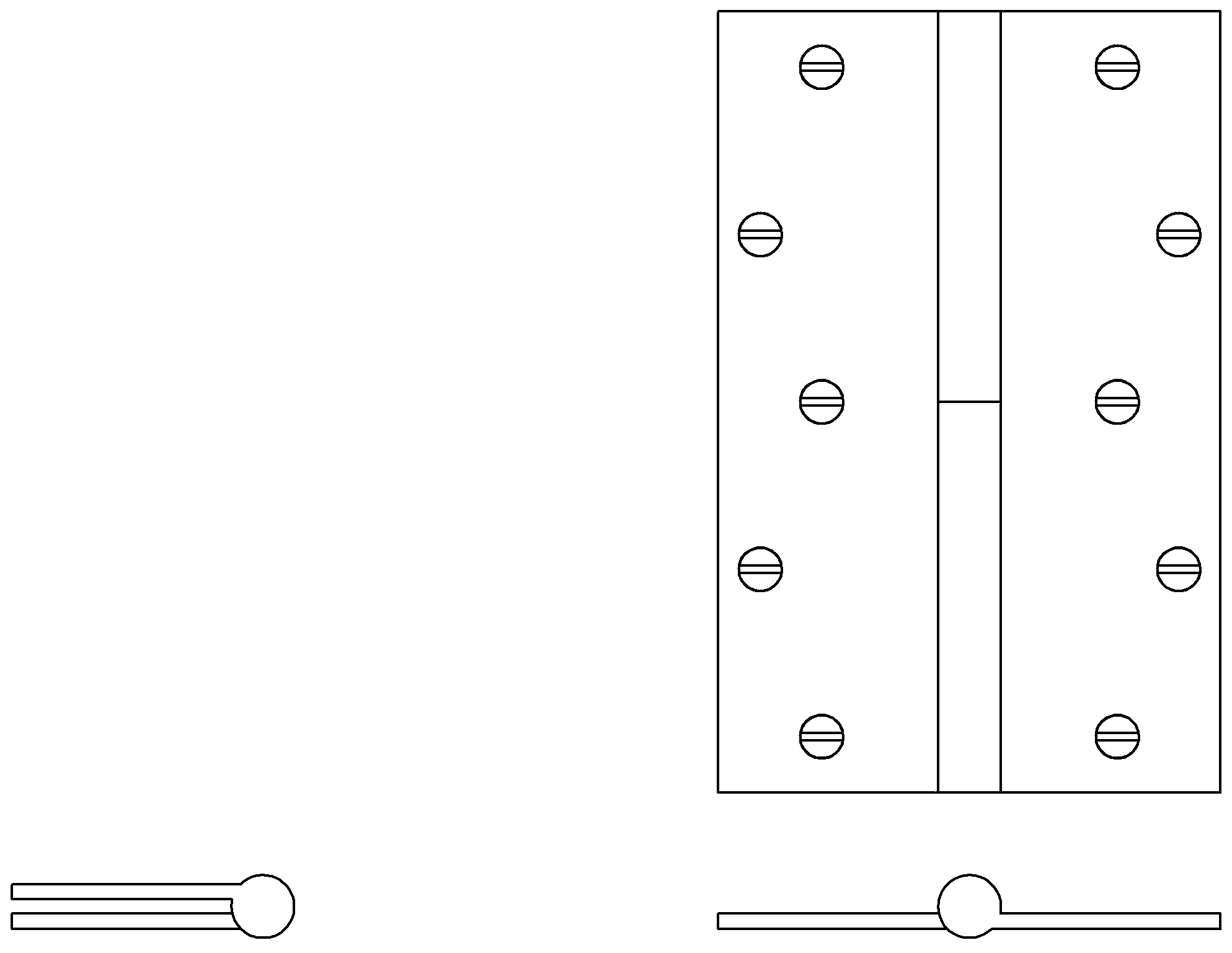

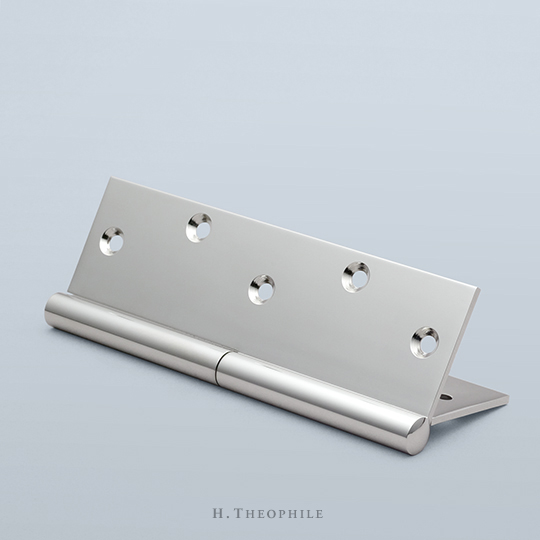

◀ Back to CatalogThe HT0211 elongated round paumelle is a premium lift-off hinge manufactured from solid brass extrusion with a fixed stainless steel pin and concealed bearing. Leaf thicknesses comply to ANSI standards for standard and heavy-weight doors.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 7" | 4" | 5/8" | .203" |
| 7" | 4-1/2" | 5/8" | .203" |
| 7" | 5" | 5/8" | .203" |
| 7" | 5-1/2" | 5/8" | .203" |
