HT0533-HT2511

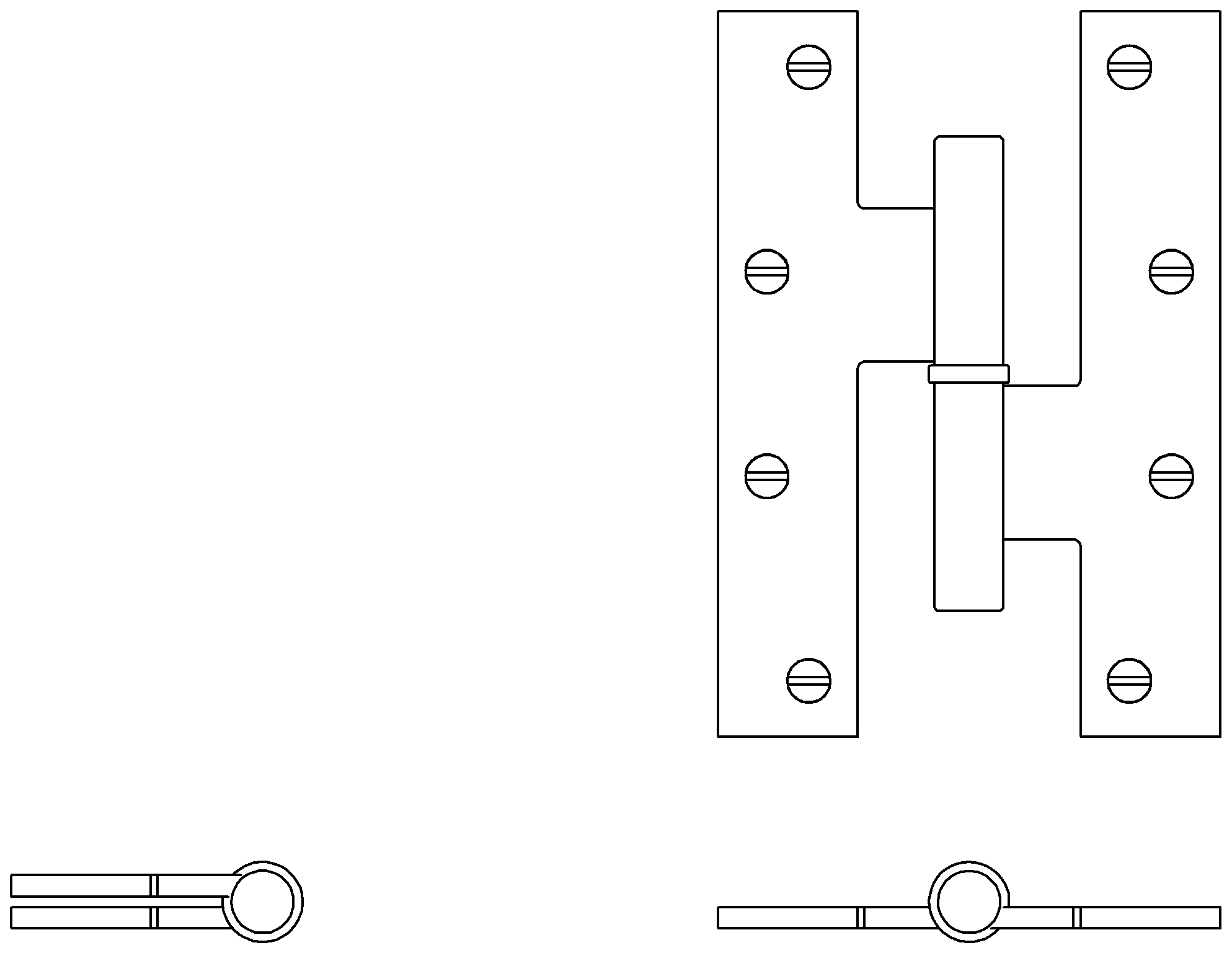

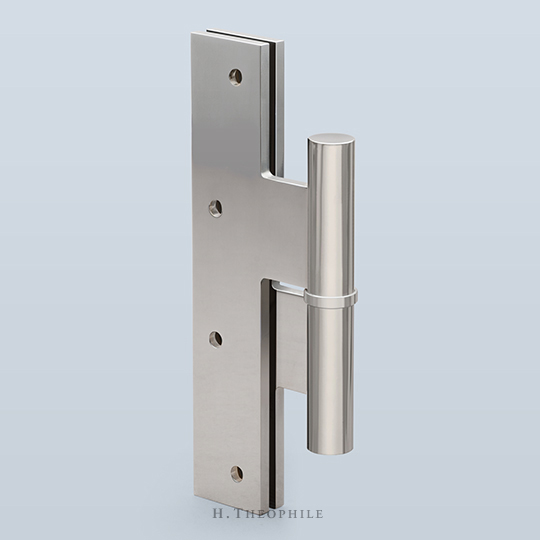

◀ Back to CatalogThe HT0533 H-hinge is a premium round paumelle manufactured from solid brass extrusion with a fixed stainless steel pin and concealed bearing. The elegant proportions of this design incorporate a widened hinge leaf and a staggered screw pattern that are both recommended for heavier doors. Shown here with flat washer HT2511. Other washer designs are also available.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 6" | 3-3/4" | 5/8" | .208" |
| 6-1/2" | 4" | 5/8" | .208" |
| 6-1/2" | 4-1/2" | 5/8" | .208" |
