HT5700-HT3100

◀  Back to Catalog

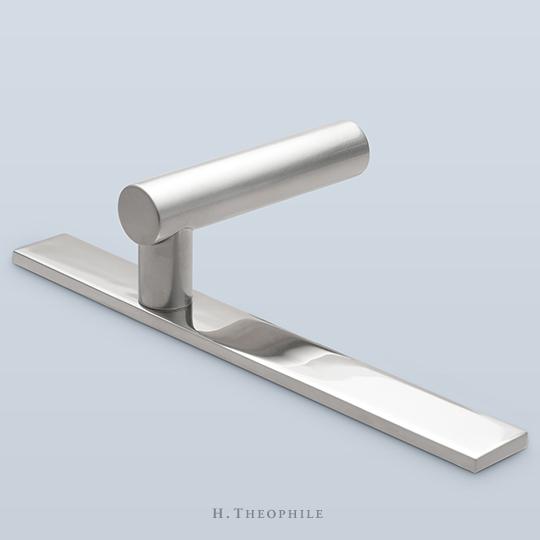

The clean modern design of the HT5700 pipe lever is distinguished by its scale and proportions. The 5" lever is shown here with a 12" x 1-1/2" rectangular backplate.See HT3100 for additional backplate information. See HT5600 for coordinating T-pull sizes.

Available in all finishes.

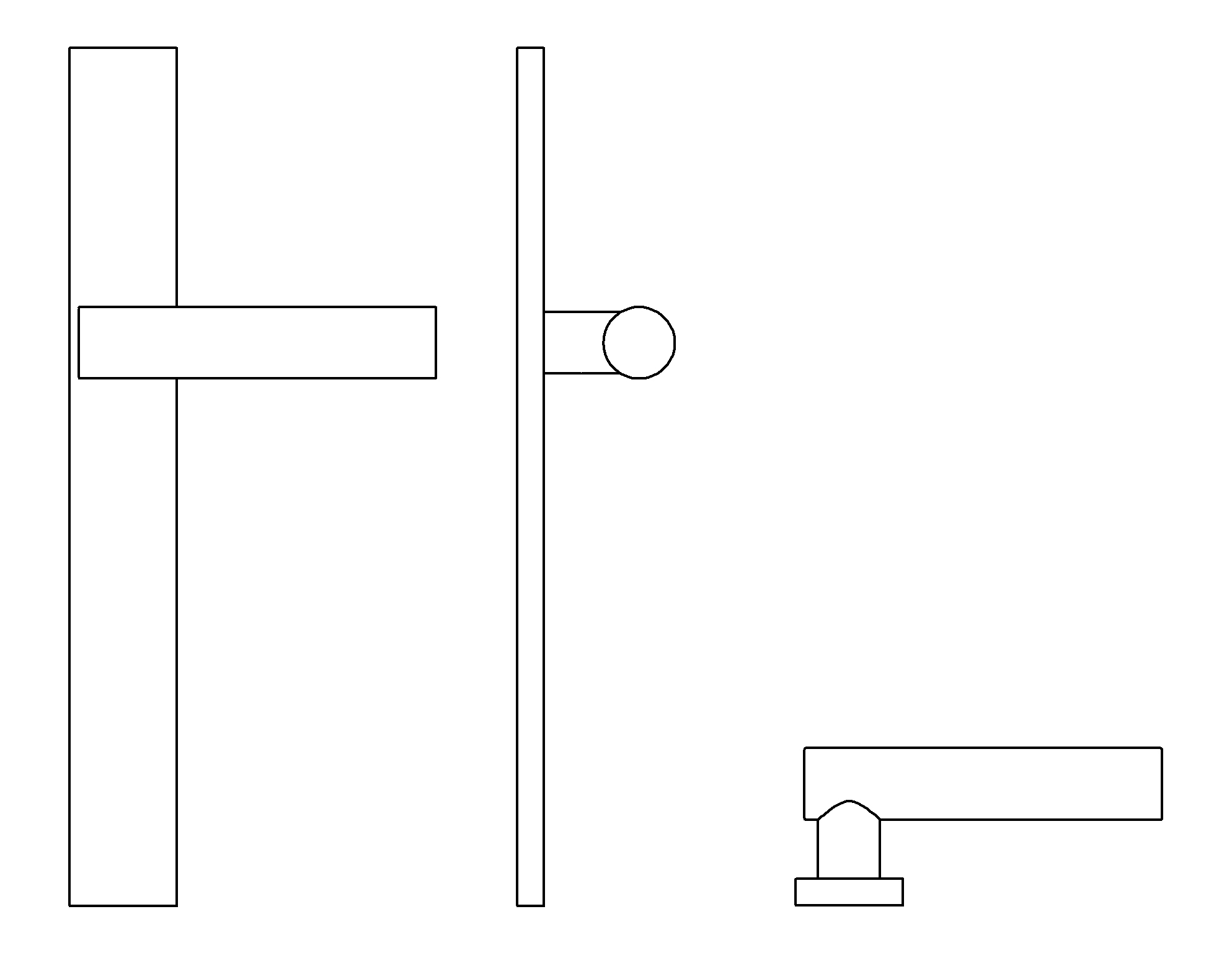

Diagram for HT5700-HT3100
LEVER LENGTHBACKPLATE L x WPROJECTION
3-3/4" overall12" x 1-1/2"2-3/16"
4" overall12" x 1-1/2"2-3/16"
4-1/4" overall12" x 1-1/2"2-3/16"
4-1/2" overall12" x 1-1/2"2-3/16"
4-3/4" overall12" x 1-1/2"2-3/16"
5" overall12" x 1-1/2"2-3/16"
Pipe lever
