HA2002

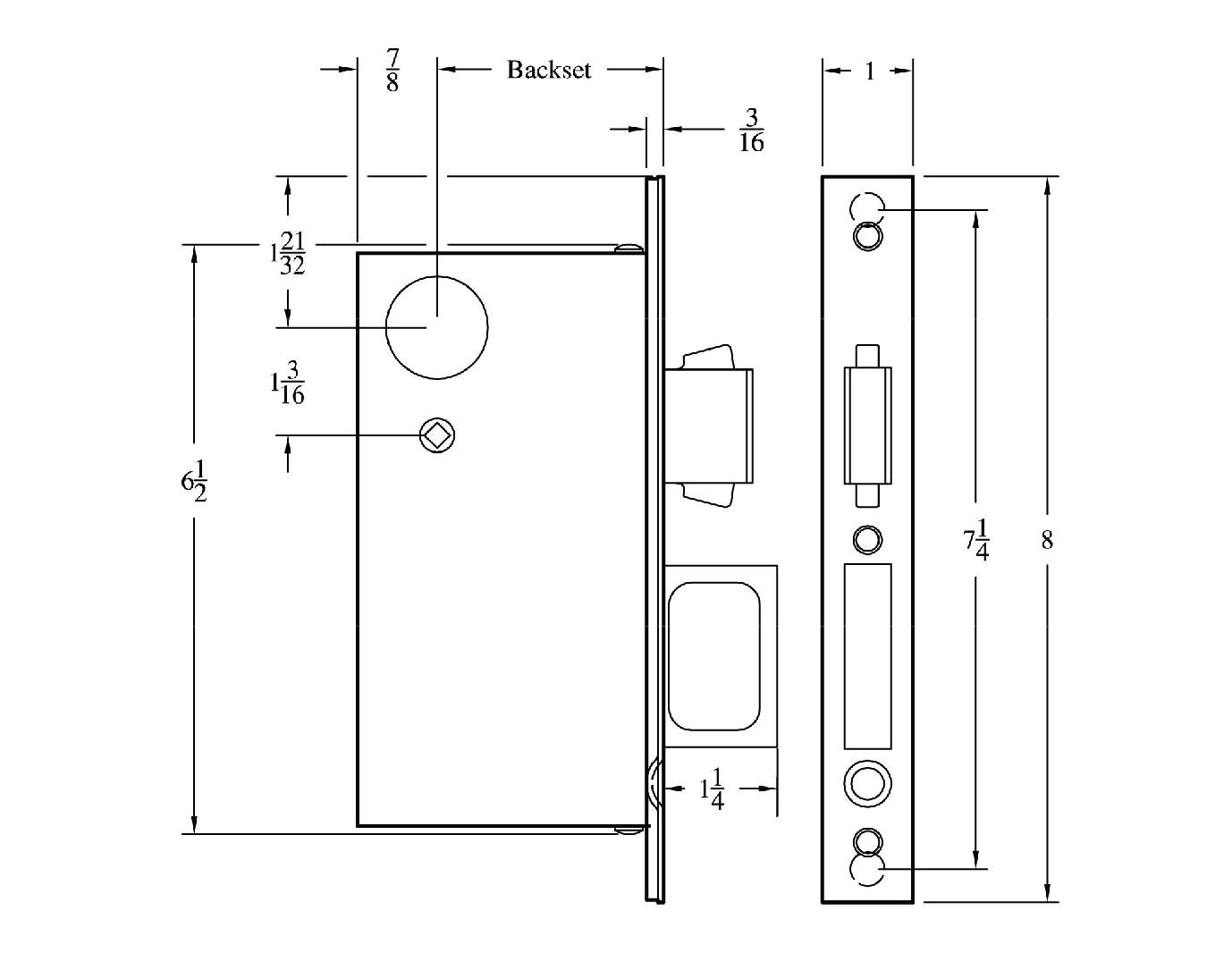

◀ Back to CatalogThe HA2002 is a privacy mortise deadbolt with a spring-activated pull for use on pocket or sliding doors. The deadbolt is thrown by a thumbturn or a keyed mortise cylinder. Custom narrow and extended backsets are also available.
Available in all finishes.
| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2" | 2-7/8" | 3/4" |
| 2-1/2" | 3-3/8" | 3/4" |
| 2-3/4" | 3-5/8" | 3/4" |
| 3-3/4" | 4-5/8" | 3/4" |
| 5" | 5-7/8" | 3/4" |
| 6" | 6-7/8" | 3/4" |
