HA8839

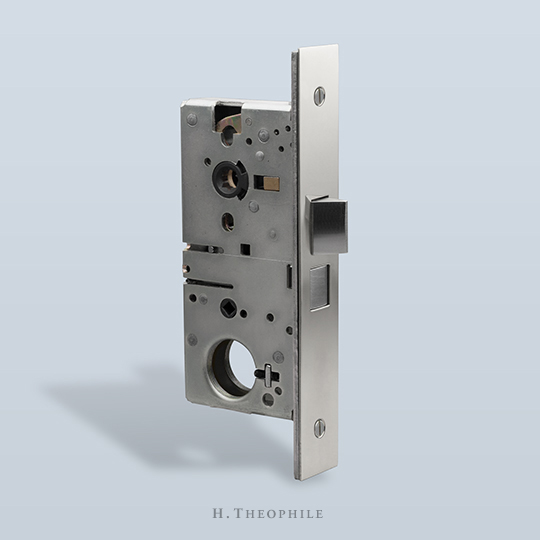

◀ Back to CatalogThe HA8839 narrow-backset privacy mortise lockset can be used with knobs and levers. The deadbolt is thrown by a thumbturn, and can be retracted by the thumbturn or the inside lever. Specify orientation as knob-above-thumbturn (as shown) or knob-below-thumbturn. Lock can be UL-listed 3 hours (R13846) with knob-under-thumbturn orientation only, and with backsets of 1-3/4" and above.
Available in all finishes.

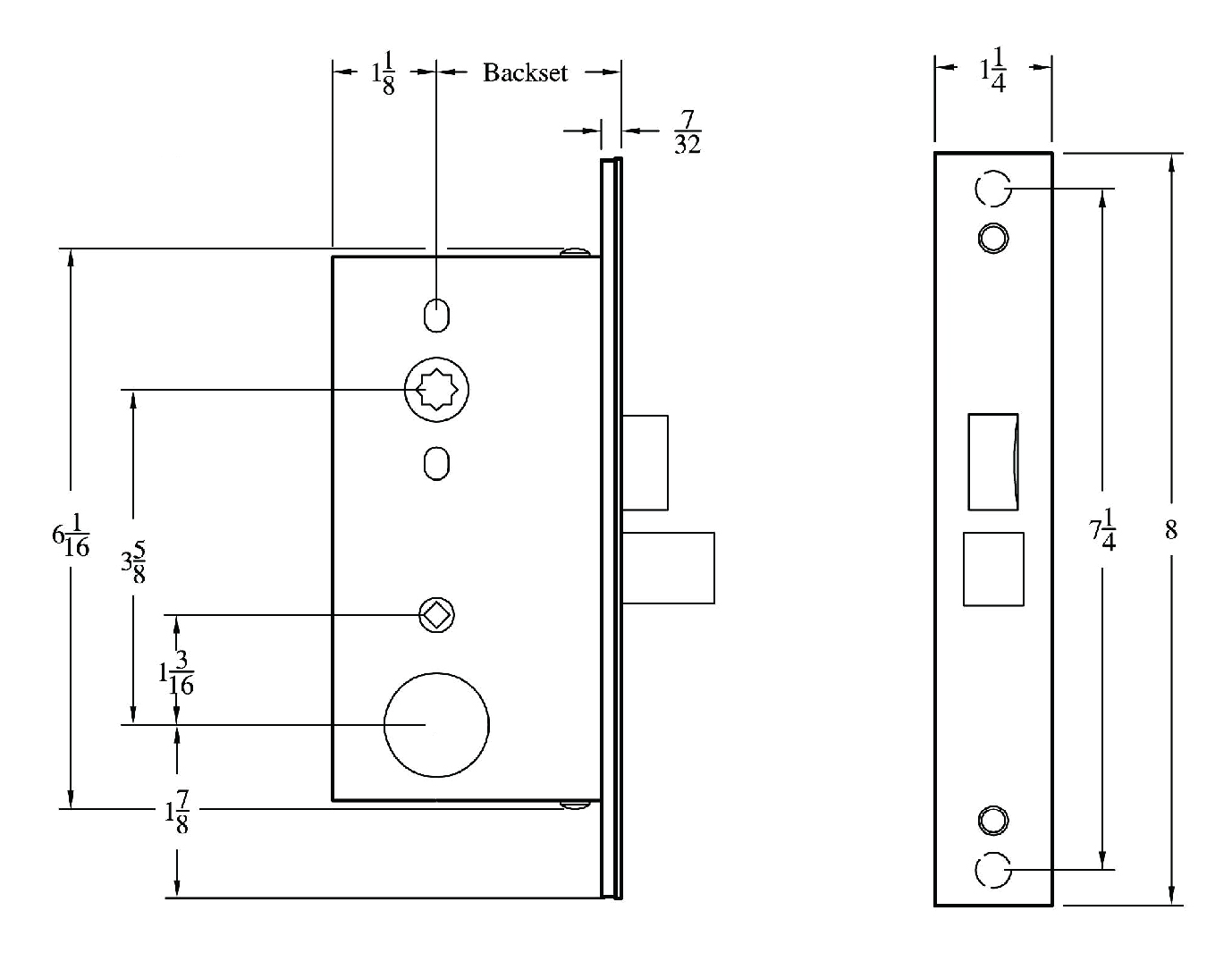

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 1-1/2" | 2-5/8" | 15/16" |
| 1-3/4" | 2-7/8" | 15/16" |
| 2" | 3-1/8" | 15/16" |
| 2-1/4" | 3-3/8" | 15/16" |
