HA9125

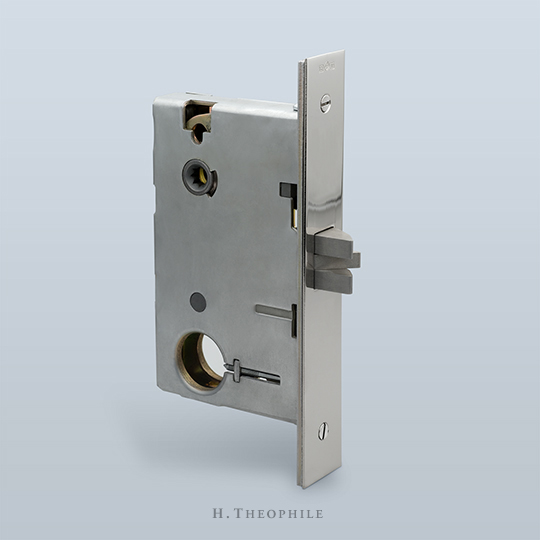

◀ Back to CatalogThe HA9125 heavy-duty passage mortise lockset can be used with knobs and levers. UL-Listed 3 hour (R13846), Grade 1 certified to ANSI/BHMA, A156.13.2005 standard. Specify orientation as knob-above-latch (as shown) or knob-below-latch. Armor front features an adjustable bevel, and rabbet kits are available upon request.
Available in all finishes.

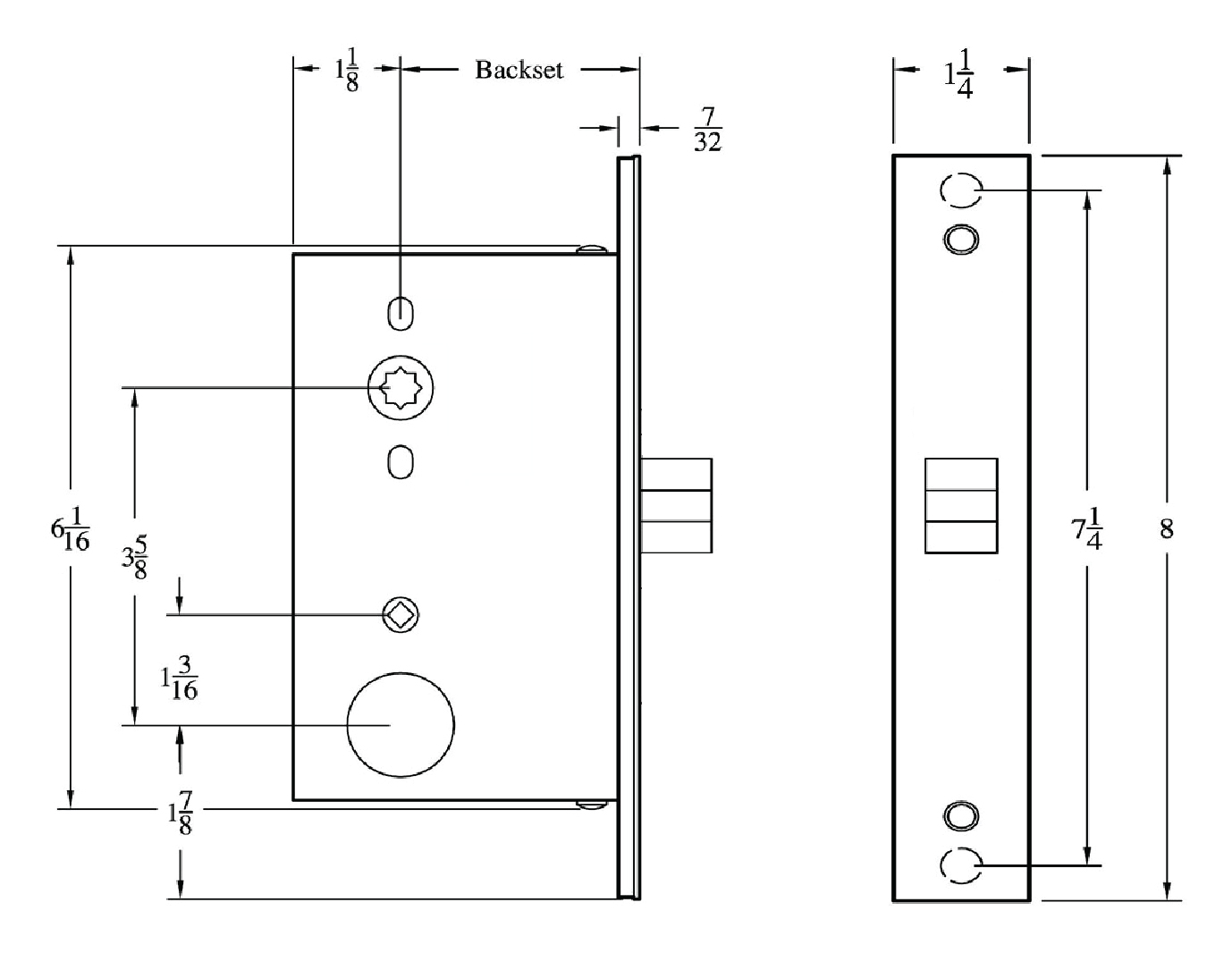

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2-1/2" | 3-5/8" | 15/16" |
| 2-3/4" | 3-7/8" | 15/16" |
| 3-3/4" | 4-7/8" | 15/16" |
| 5" | 6-1/8" | 15/16" |
| 6" | 7-1/8" | 15/16" |
