HA9841

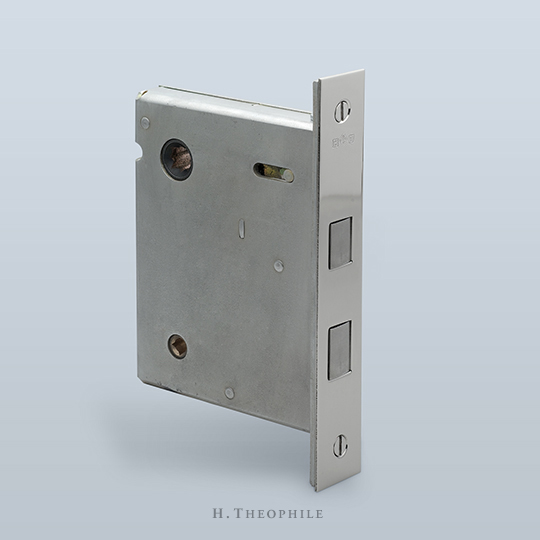

◀ Back to CatalogThe HA9841 interior mortise privacy lockset features a magnetic latch and can be used with knobs and levers. The magnetic latch sits flush to the armor front when the door is open and is thrown when the door is closed, allowing for a non-handed, "lip-less" strike in the jamb. The deadbolt is thrown by a thumbturn, and can be retracted by the thumbturn or optional emergency release key. Specify orientation as knob-above-thumbturn (as shown) or knob-below-thumbturn. Armor front features an adjustable bevel, and rabbet kits are available upon request.
Available in all finishes.

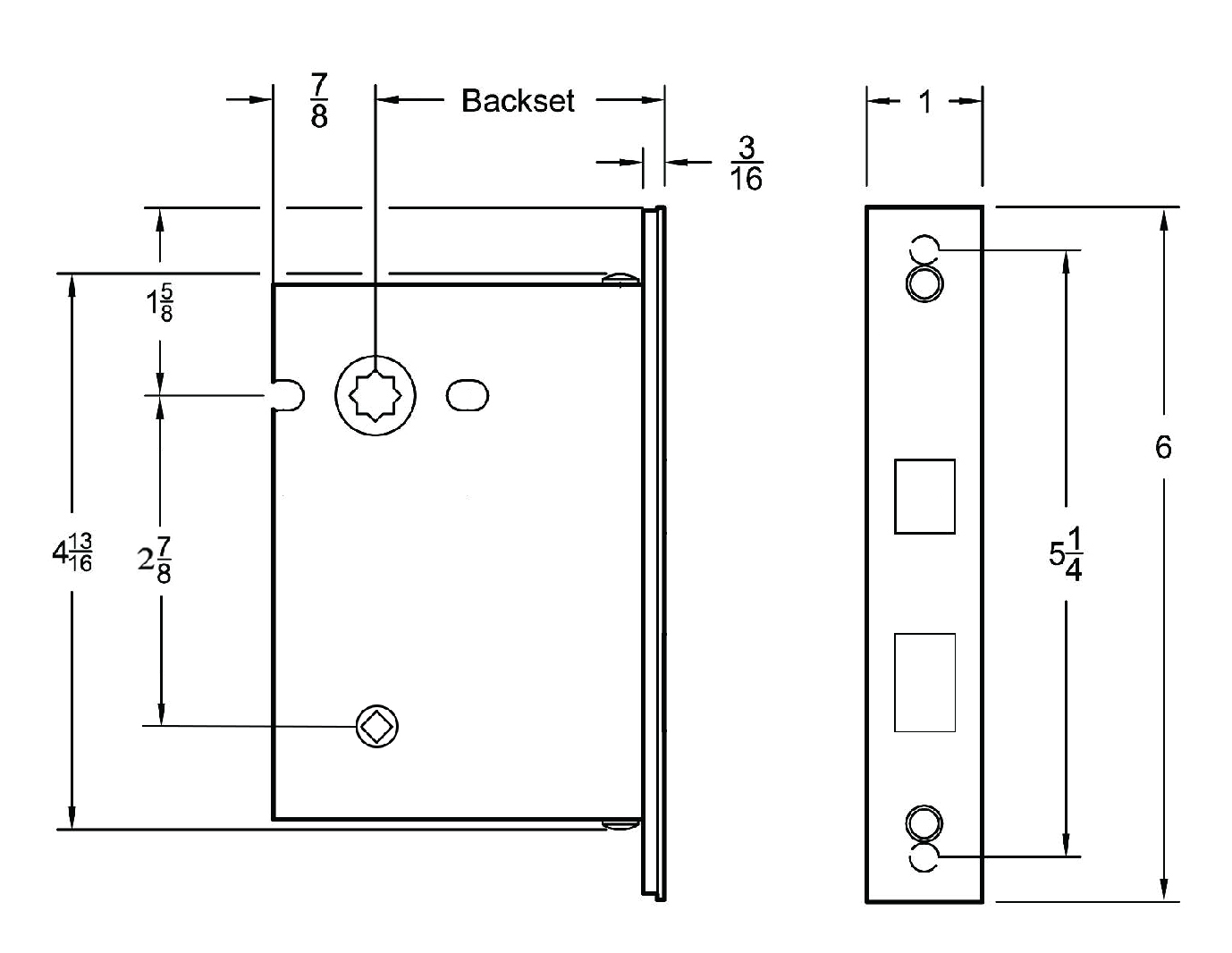

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2" | 2-7/8" | 3/4" |
| 2-1/2" | 3-3/8" | 3/4" |
| 2-3/4" | 3-5/8" | 3/4" |
