HA9159

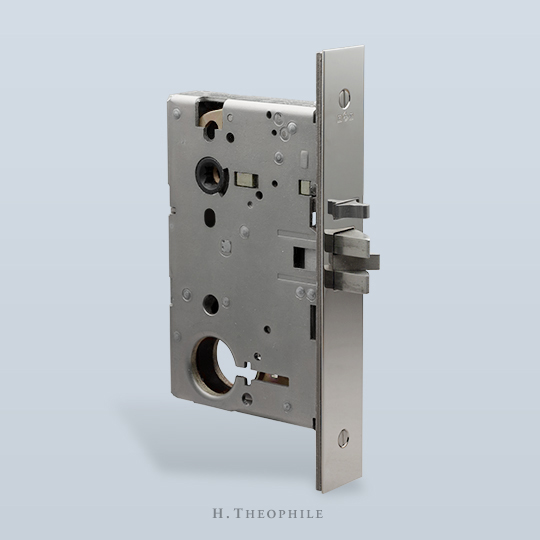

◀ Back to CatalogThe HA9159 heavy-duty storeroom-function mortise lockset can be used with knobs and levers. The latch is locked automatically when the door is shut, and can be retracted by the keyed mortise cylinder as well as the inside lever. UL-Listed 3 hour (R13846), Grade 1 certified to ANSI/BHMA, A156.13.2005 standard. Specify orientation as knob-above-latch (as shown) or knob-below-latch.
Available in all finishes.

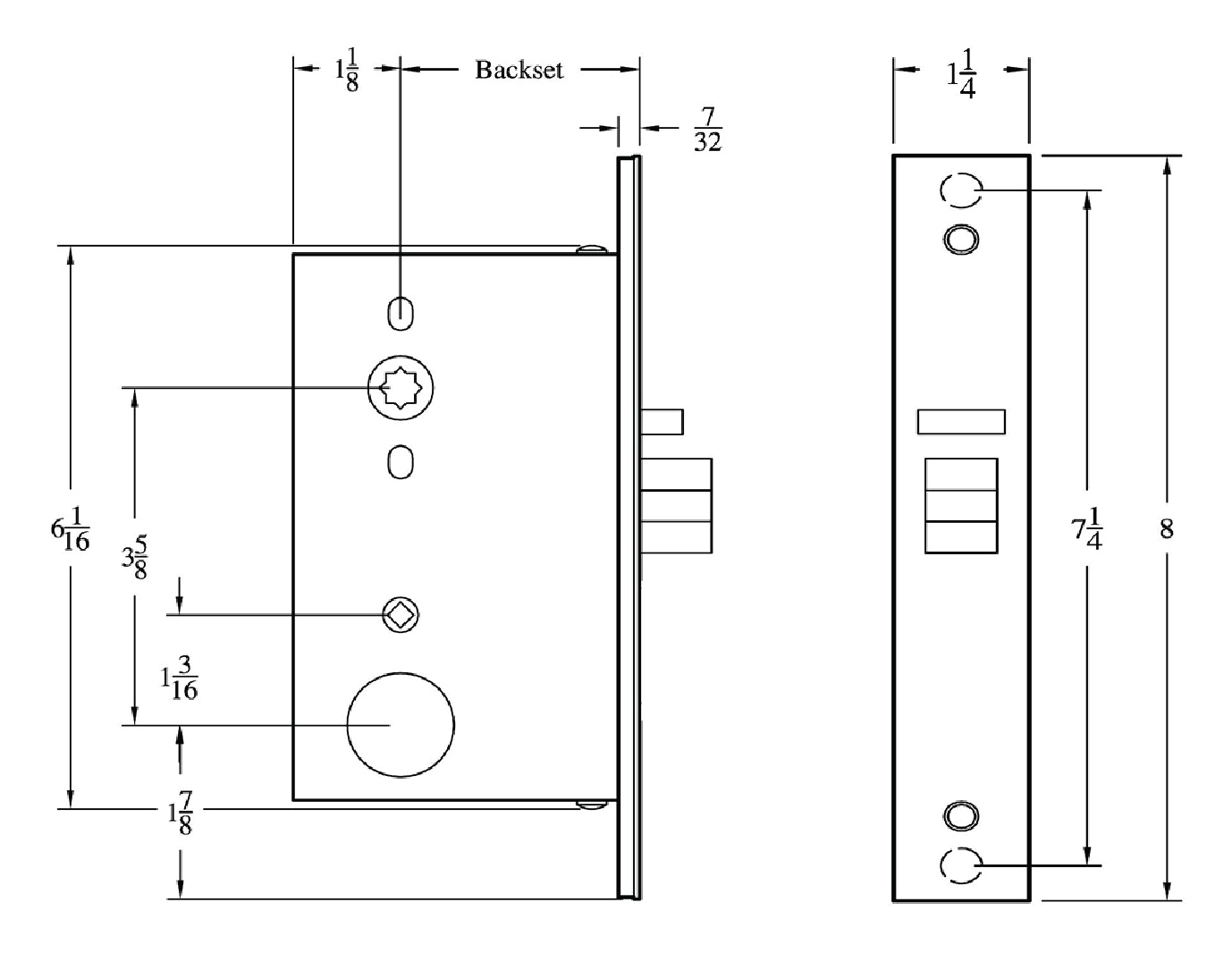

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2-1/2" | 3-5/8" | 15/16" |
| 2-3/4" | 3-7/8" | 15/16" |
| 3-3/4" | 4-7/8" | 15/16" |
| 5" | 6-1/8" | 15/16" |
| 6" | 7-1/8" | 15/16" |
