HA9159x
◀ Back to CatalogThe HA9159x is a motor drive electric lock and is UL-listed (3-hr). Keyed cylinder will override electronics to retract latch bolt. No thumbturn is required. Minimum door thickness is 1-3/4". Emergency egress always from interior side. - Universal input voltage (accepts between 10.9V-26.4V) - Can easily be changed from Fail Secure to Fail Safe onsite Grade 1 certified to ANSI/BHMA, A156.13.2005 standard
Available in all finishes.

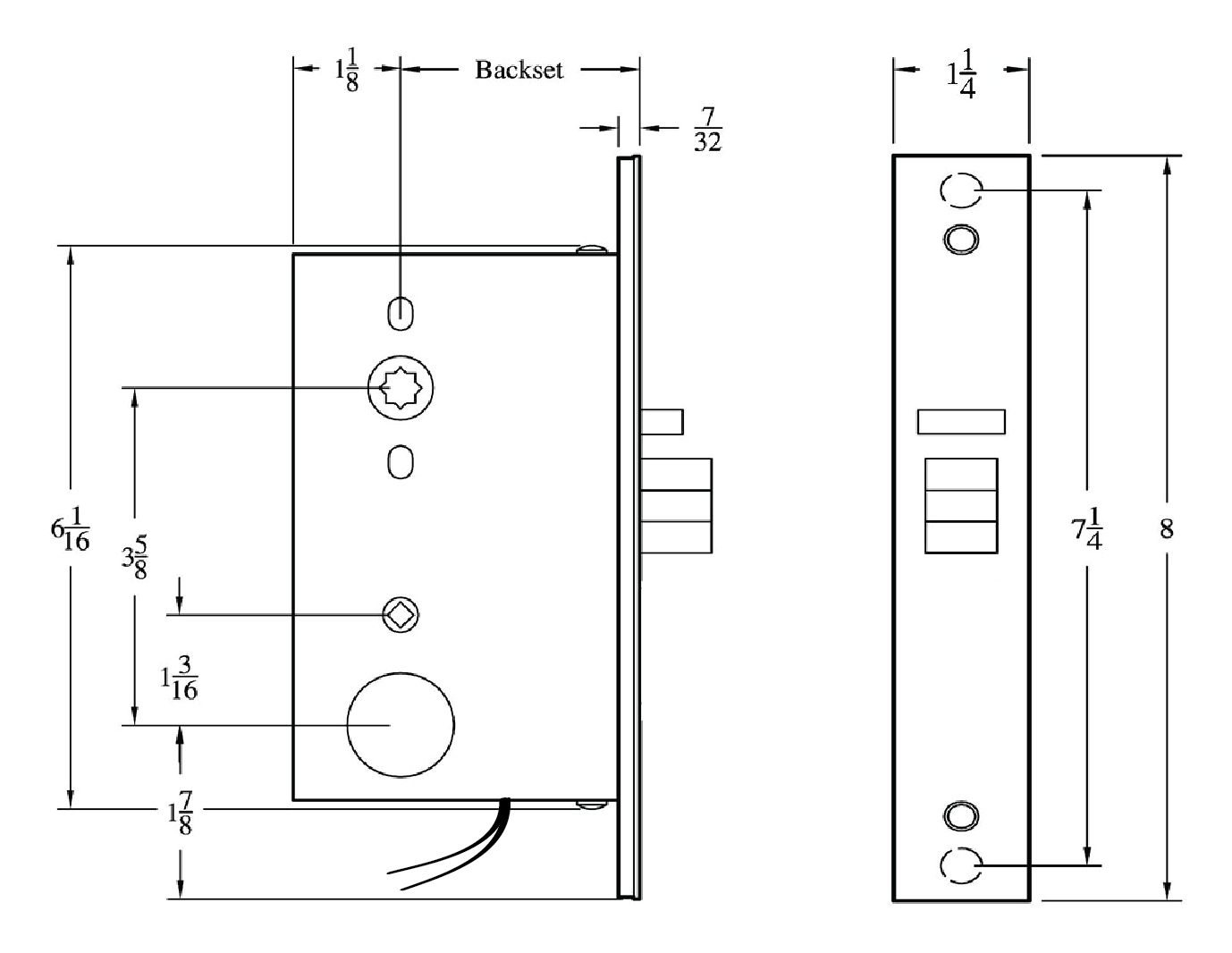

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2-1/2" | 3-5/8" | 15/16" |
| 2-3/4" | 3-7/8" | 15/16" |
| 3-3/4" | 4-7/8" | 15/16" |
| 5" | 6-1/8" | 15/16" |
| 6" | 7-1/8" | 15/16" |
