HA9825

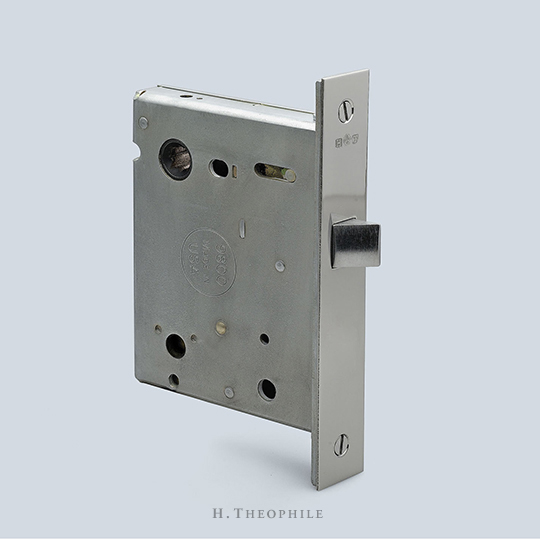

◀ Back to CatalogThe HA9825 interior mortise passage lockset can be used with knobs and levers. Specify orientation as knob-above-latch (as shown) or knob-below-latch. Armor front features an adjustable bevel, and rabbet kits are available upon request.
Available in all finishes.

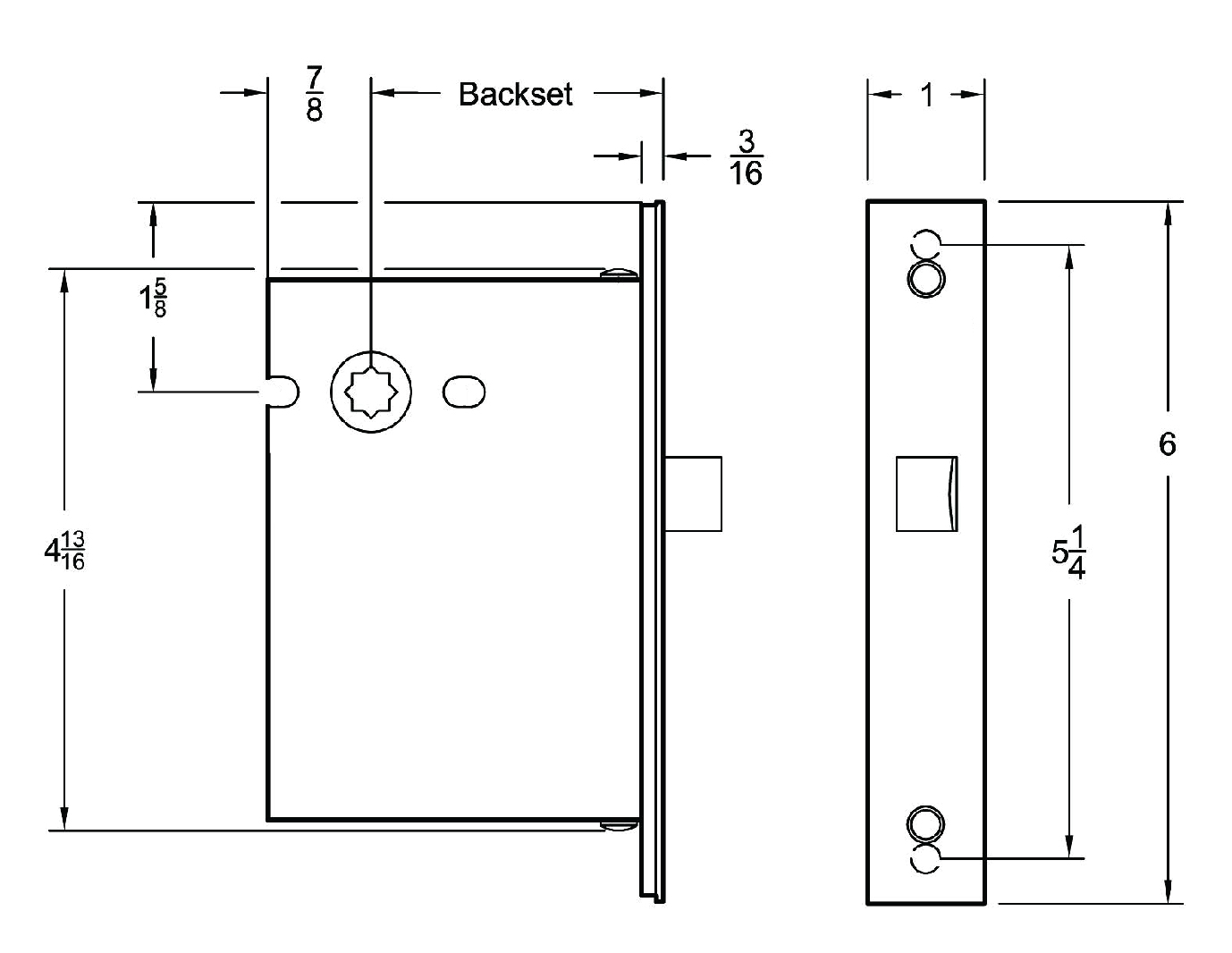

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2" | 2-7/8" | 3/4" |
| 2-1/2" | 3-3/8" | 3/4" |
| 2-3/4" | 3-5/8" | 3/4" |
