HT7016

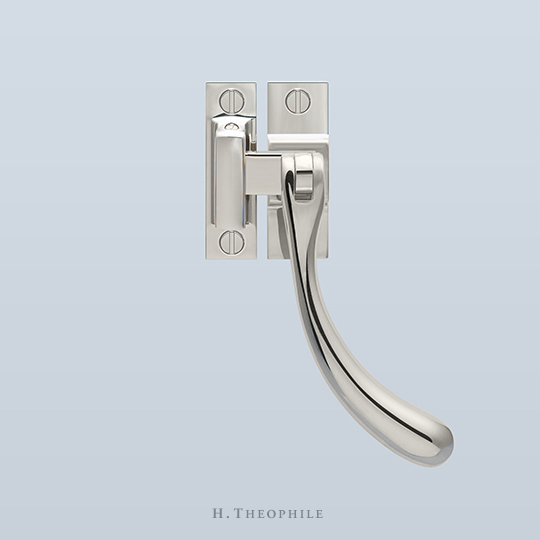

◀ Back to CatalogThe HT7016 is a curved casement fastener for hinged casement windows. It can be custom finished to suit project requirements. Shown here with a surface-mounted strike. Also available with a mortise strike upon request. Please specify handing when ordering. Base plate dimension: 2-1/4" x 3/4" Strike plate dimension: 2-1/4" x 5/8"
Available in all finishes.

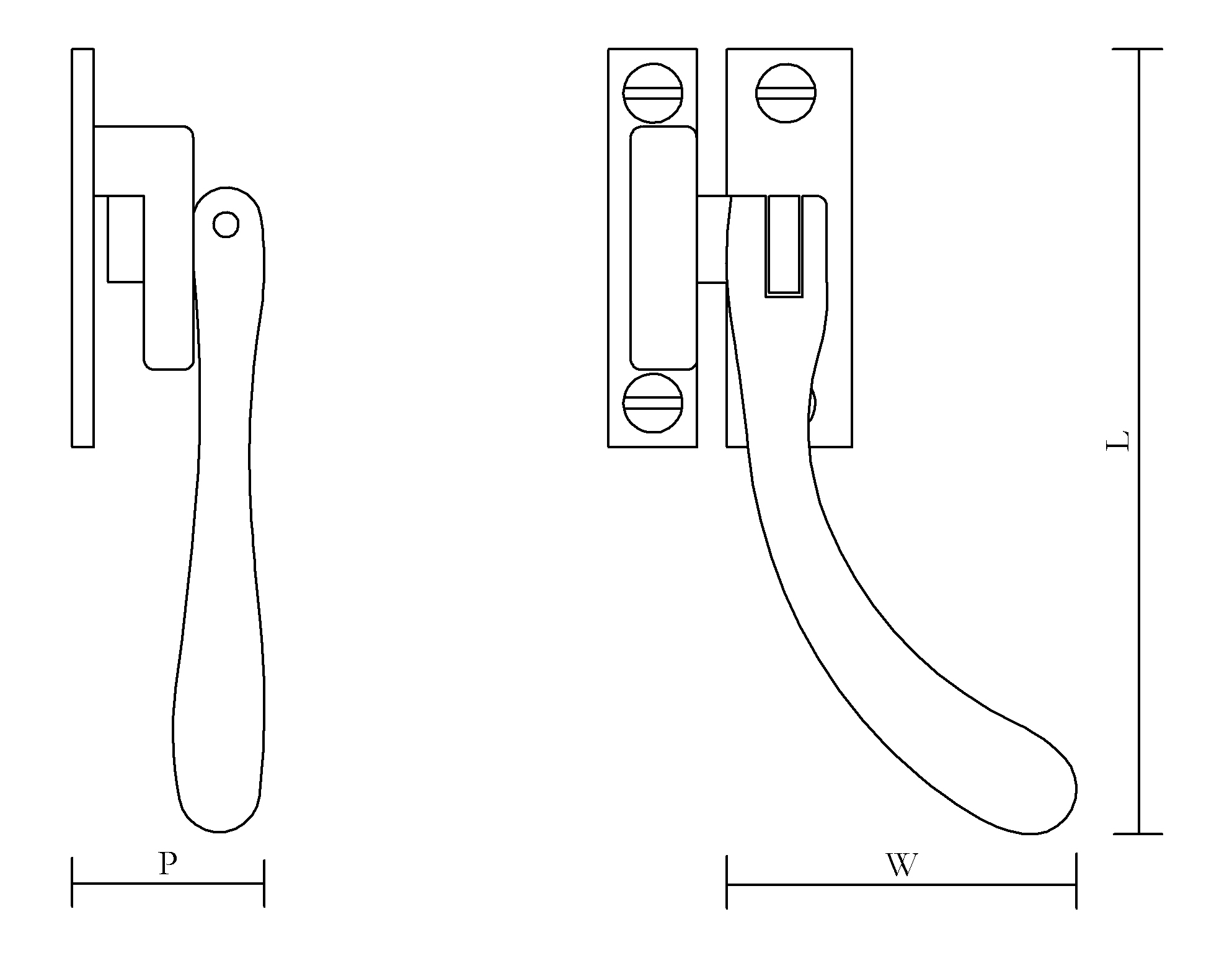

| LENGTH (L) | WIDTH (W) | PROJECTION (P) |
|---|---|---|
| 4-15/16" | 1-7/8" | 1-1/4" |
