HT9401

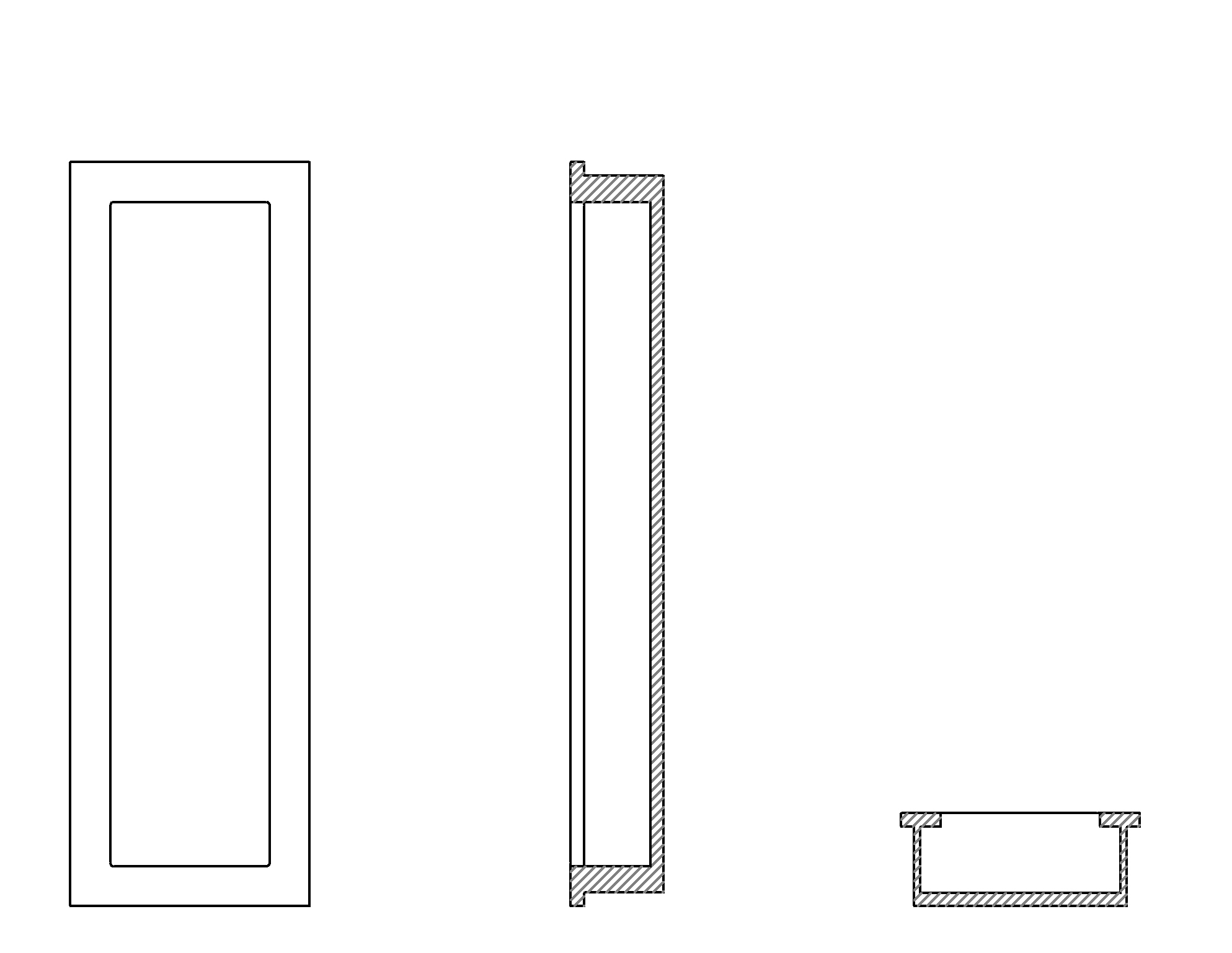

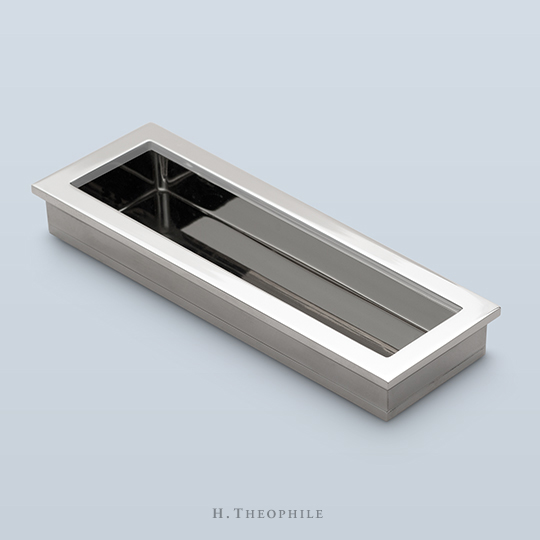

◀ Back to CatalogThe HT9401 rectangular recessed pull has an even frame width on all four sides. This pull can be used on sliding or swing doors and can be adapted for privacy and keyed functions; specify when ordering. Available in a wide variety of sizes and depths; various representative sizes and depths are shown in the tearsheet table.
Available in all finishes.
| LENGTH | WIDTH | PROJECTION | BOX DEPTH |
|---|---|---|---|
| 5" | 2-3/4" | 1/8" | 7/16" |
| 6" | 3" | 1/8" | 7/16" |
| 7" | 2-1/4" | 1/8" | 7/16" |
| 8" | 2-3/4" | 1/8" | 7/16" |
| 12" | 2-1/2" | 1/8" | 7/16" |
