HT9415z

◀  Back to Catalog

The HT9415z recessed pull is symmetrical on each side and has 90-degree inner corners. This pull can be used on sliding or swing doors and can be adapted for privacy and keyed functions; specify when ordering. Standard box depth (mortised depth behind face frame) is shown.

Available in all finishes.

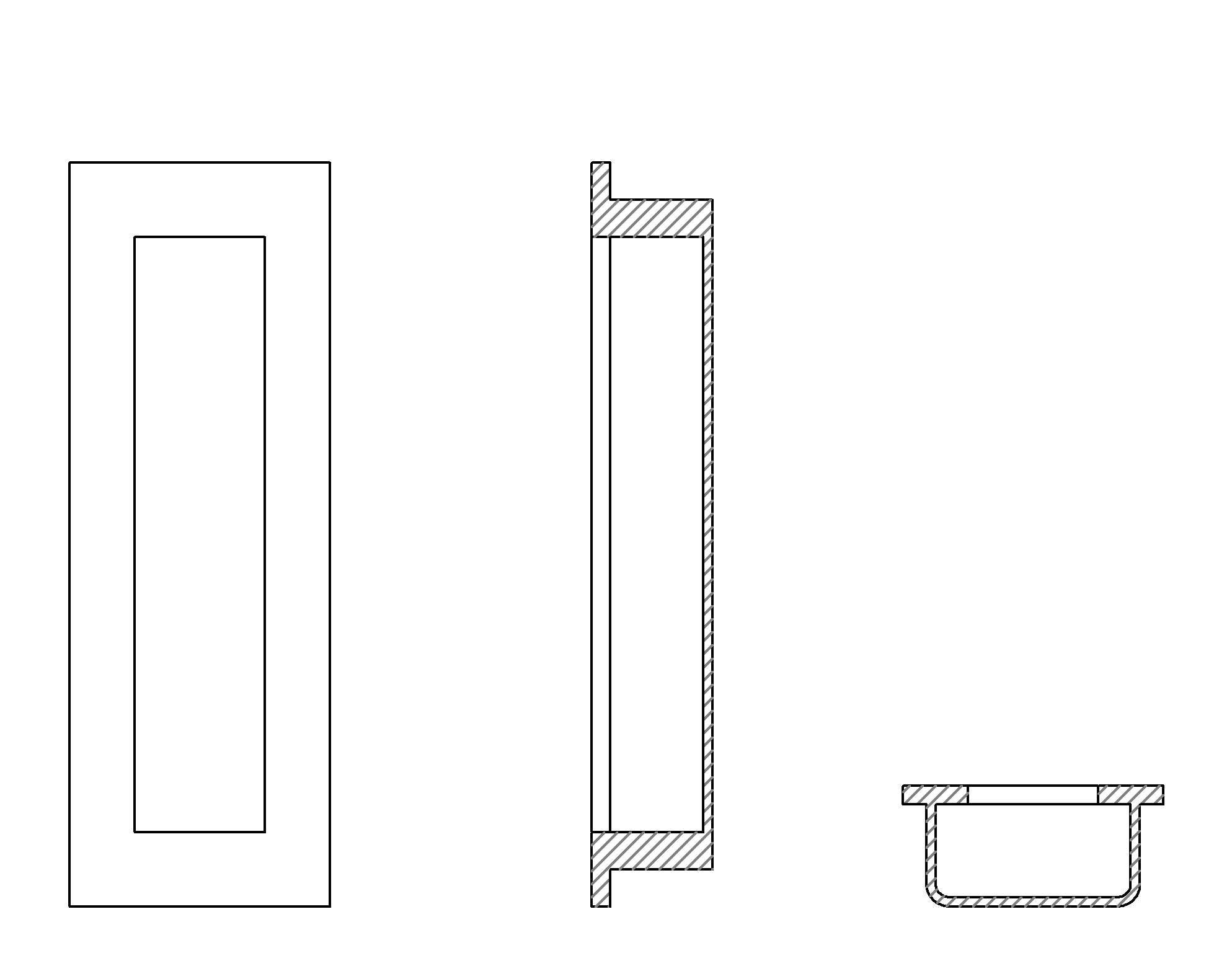

Diagram for HT9415z
LENGTHWIDTHPROJECTIONBOX DEPTH
5"1-3/4"1/8"11/16"
7"1-3/4"1/8"11/16"

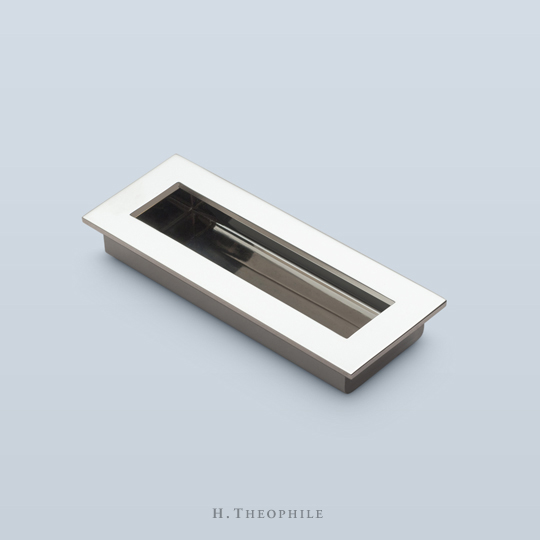

Rectangular with symmetrical frame and square inside corners
