HT0222

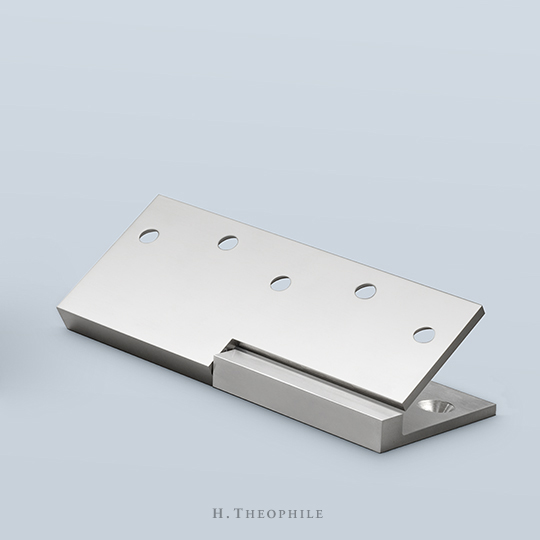

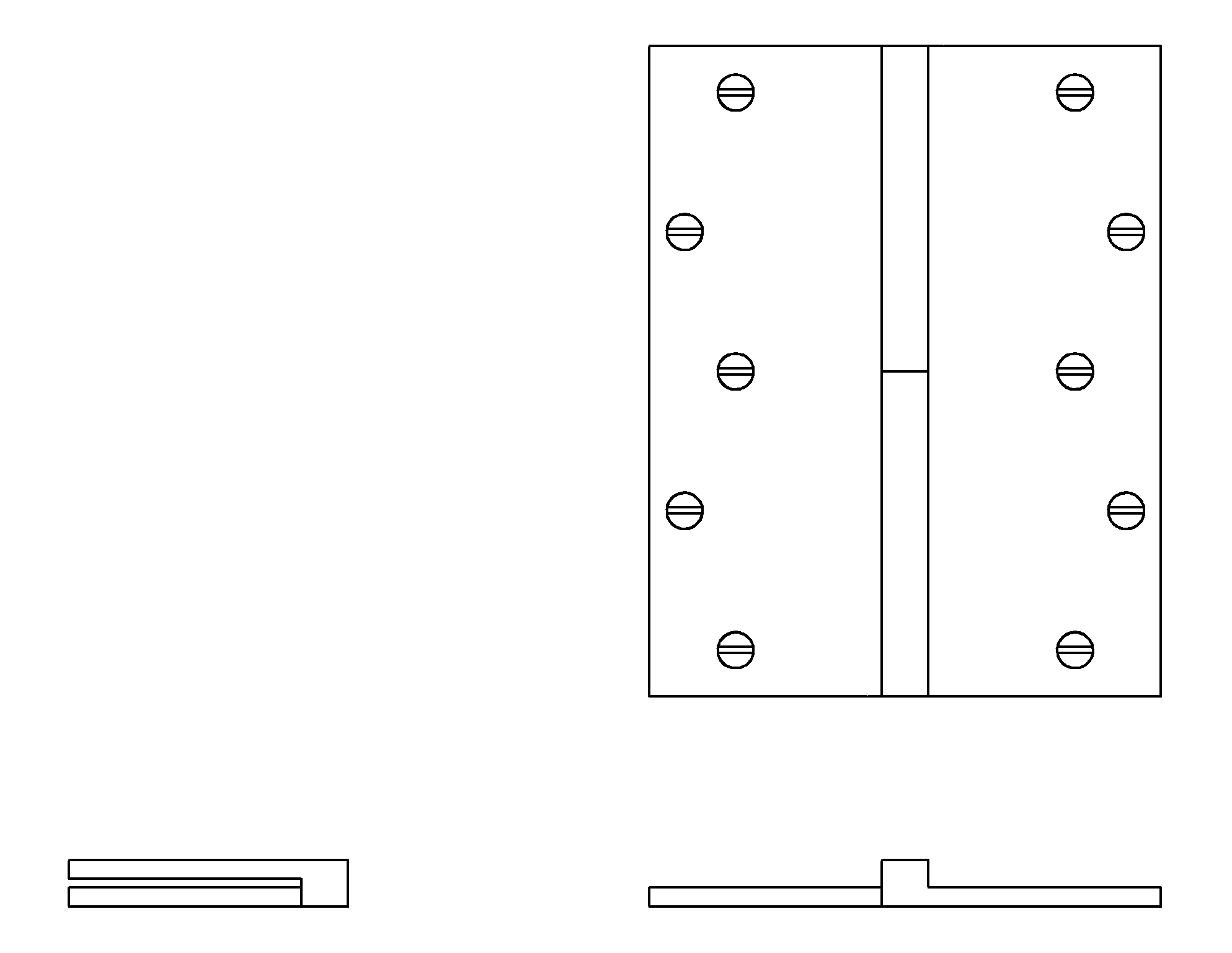

◀ Back to CatalogThe HT0222 elongated square paumelle is a premium lift-off hinge manufactured from solid brass with a fixed stainless steel pin and concealed bearing. Its engineered design ensures that the knuckle sits perfectly square when closed.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 7" | 4" | 1/2" | 3/16" |
| 7" | 4" | 1/2" | .203" |
| 7" | 4-1/2" | 1/2" | 3/16" |
| 7" | 4-1/2" | 1/2" | .203" |
| 7" | 5" | 1/2" | 3/16" |
| 7" | 5" | 1/2" | .203" |
| 7" | 5-1/2" | 1/2" | 3/16" |
| 7" | 5-1/2" | 1/2" | .203" |
