HT0248

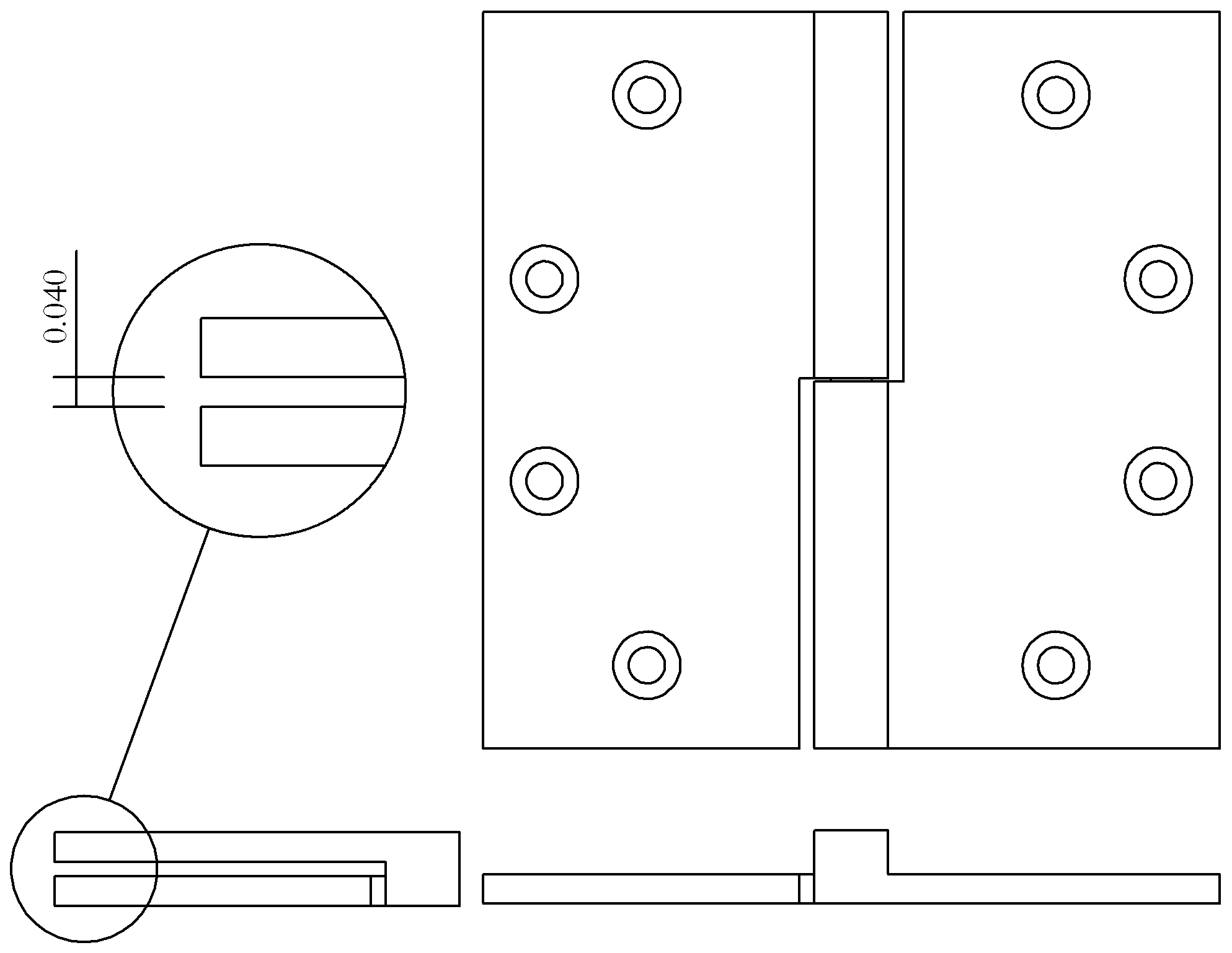

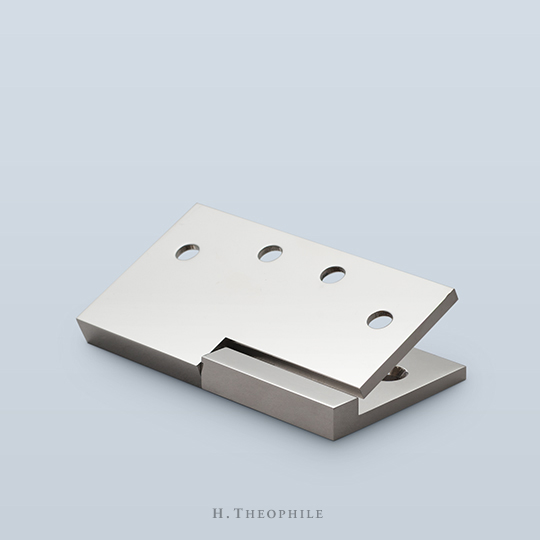

◀ Back to CatalogThe HT0248 square paumelle is a standard, more economical lift-off hinge with a fixed stainless steel pin and concealed bearings. The hinges have a minimal gap between the leaves of 0.040" when in the closed position. See HT0221 for the premium square paumelle with the 1/8" reveal.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 3-1/2" | 3-1/2" | .4" | .18" |
| 4" | 4" | .4" | .18" |
| 4-1/2" | 4" | .4" | .18" |
| 4-1/2" | 4-1/2" | .4" | .18" |
| 5" | 4" | .4" | .18" |
| 5" | 4-1/2" | .4" | .18" |
| 5" | 5" | .4" | .18" |
