HT0240-HT2511

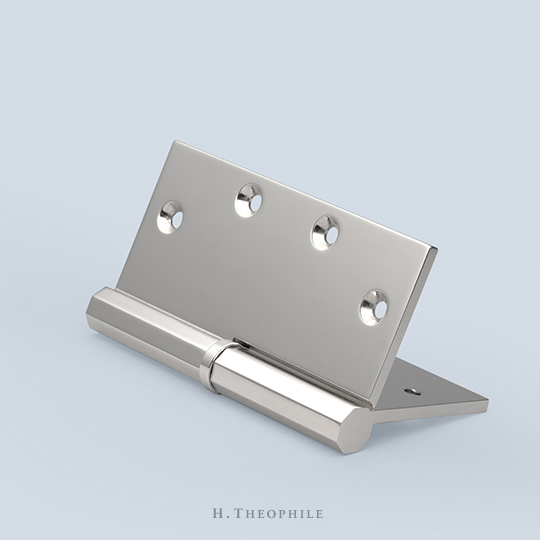

◀ Back to CatalogThe HT0240 octagonal paumelle is a premium lift-off hinge manufactured from solid brass with a fixed stainless steel pin and concealed bearing. Shown here with flat washer HT2511. Other washer designs are also available.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 4-1/2" | 4" | 1/2" | .134" |
| 4-1/2" | 4-1/2" | 1/2" | .154" |
| 5" | 5" | .62" | .19" |
