HT0401-HT0980

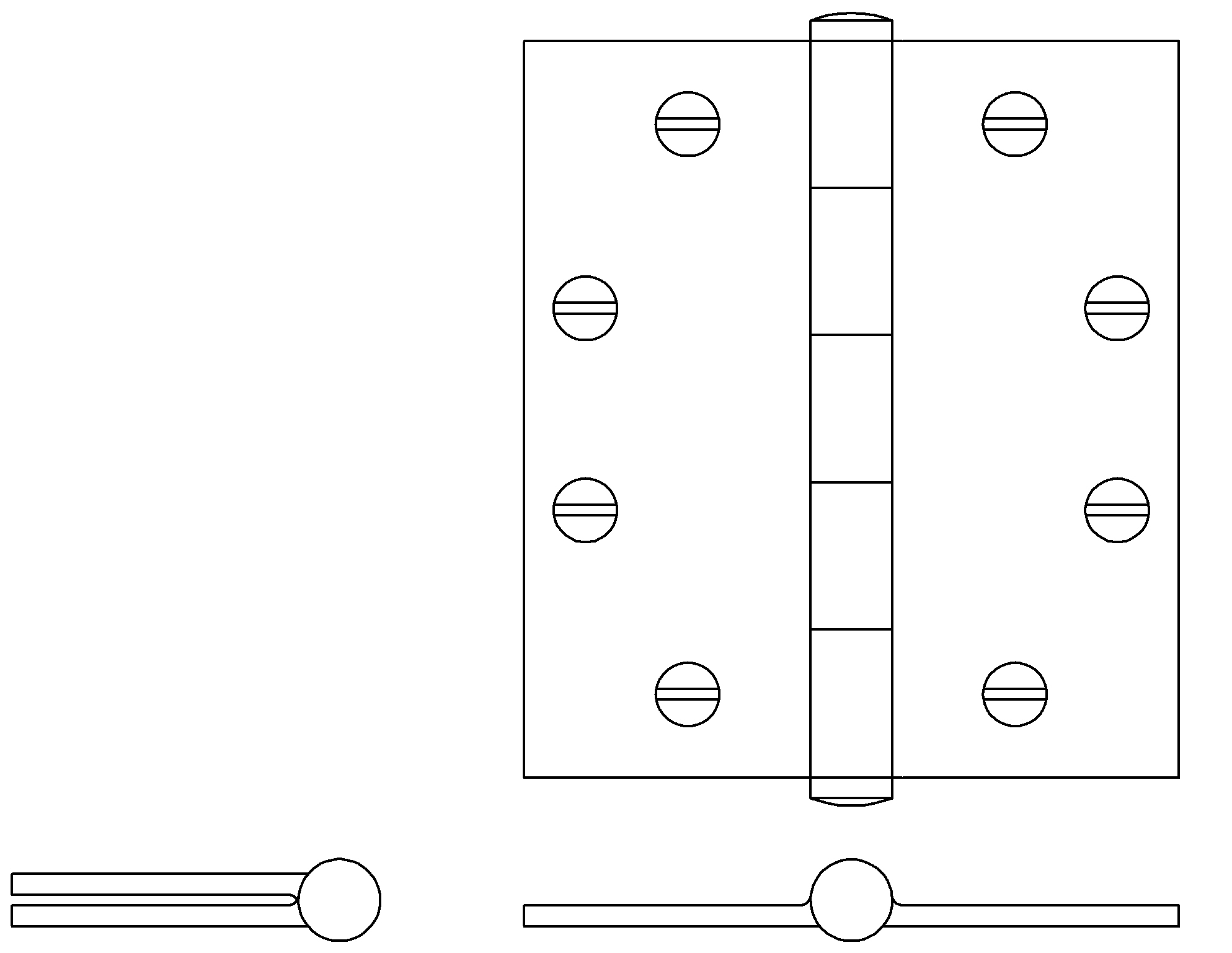

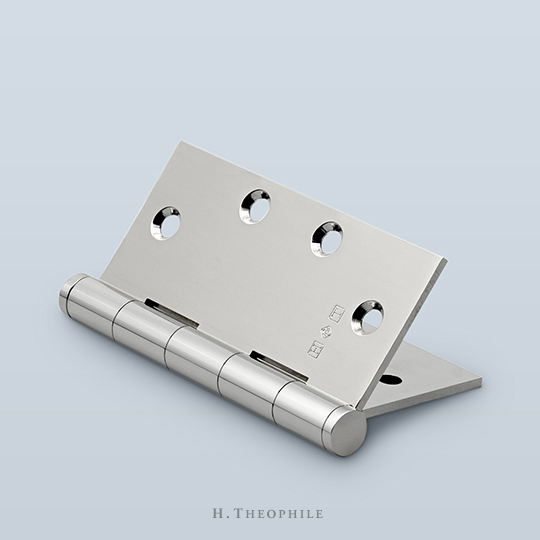

◀ Back to CatalogThe HT0401 is a premium butt hinge manufactured from solid brass extrusion. Shown here with HT0980 button finials. Other sizes and finial designs are also available.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 3-1/2" | 3-1/2" | 1/2" | .123" |
| 4" | 3-1/2" | 1/2" | .123" |
| 4" | 4" | 1/2" | .13" |
| 4-1/2" | 4" | 1/2" | .13" |
| 4-1/2" | 4-1/2" | 9/16" | .135" |
| 5" | 4" | 9/16" | .135" |
| 5" | 4-1/2" | 9/16" | .135" |
| 5" | 5" | 9/16" | .146" |
| 6" | 6" | 5/8" | .165" |
