HT0403-HT0980

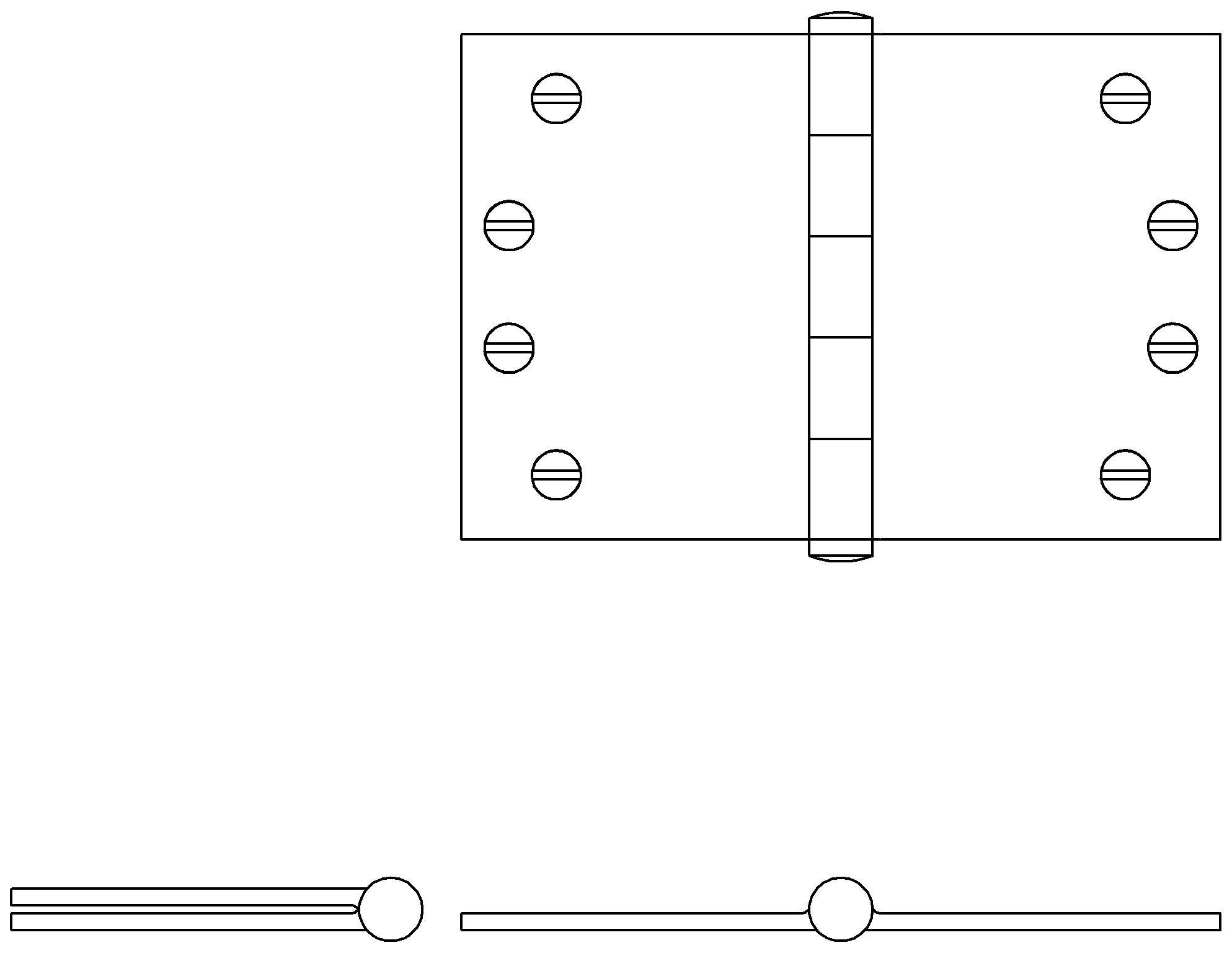

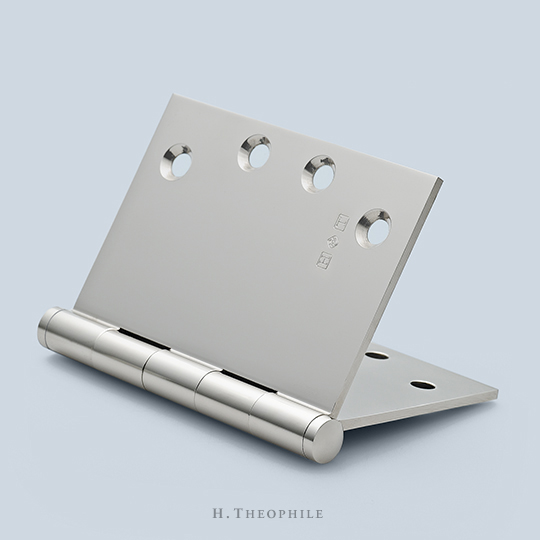

◀ Back to CatalogThe HT0403 is a wide-throw premium butt hinge. Shown here with HT0980 button finials. Other sizes and finial designs are available.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 4" | 5" | 1/2" | .13" |
| 4" | 6" | 1/2" | .13" |
| 4" | 7" | 1/2" | .13" |
| 4" | 8" | 1/2" | .13" |
| 4-1/2" | 5" | 9/16" | .135" |
| 4-1/2" | 6" | 9/16" | .135" |
| 4-1/2" | 7" | 9/16" | .135" |
| 4-1/2" | 8" | 9/16" | .135" |
