HT5700-HT3043v

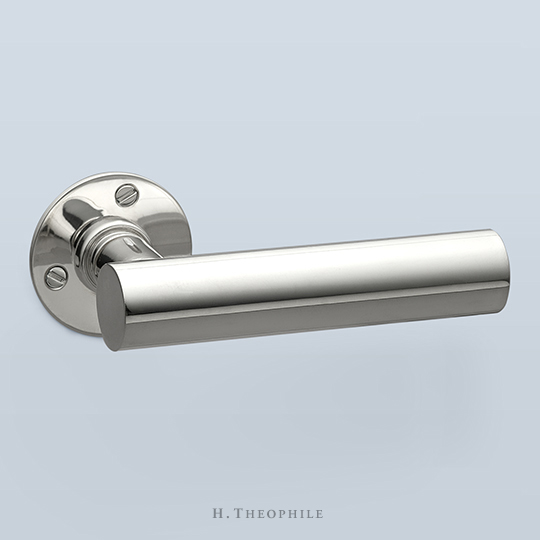

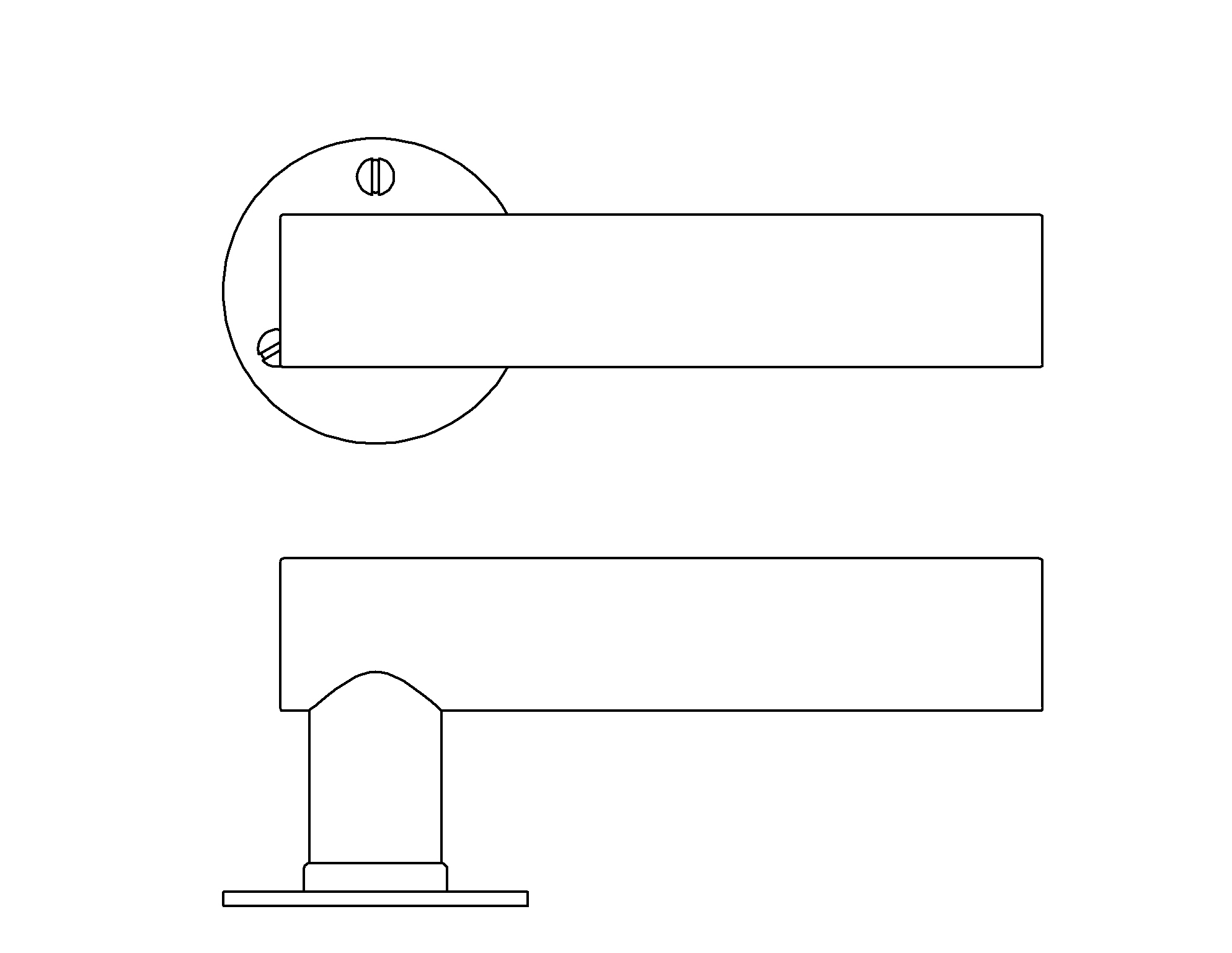

◀ Back to CatalogThe clean modern design of the HT5700 pipe lever is distinguished by its scale and proportions. The 5" lever is shown here with a 2" round backplate. See HT3043v for additional backplate information. See HT5600 for coordinating T-pull sizes.
Available in all finishes.
| LEVER LENGTH | BACKPLATE | PROJECTION |
|---|---|---|
| 3-3/4" overall | 2" diameter | 2-5/16" |
| 4" overall | 2" diameter | 2-5/16" |
| 4-1/4" overall | 2" diameter | 2-5/16" |
| 4-1/2" overall | 2" diameter | 2-5/16" |
| 4-3/4" overall | 2" diameter | 2-5/16" |
| 5" overall | 2" diameter | 2-5/16" |
