HT7012-HT9033h

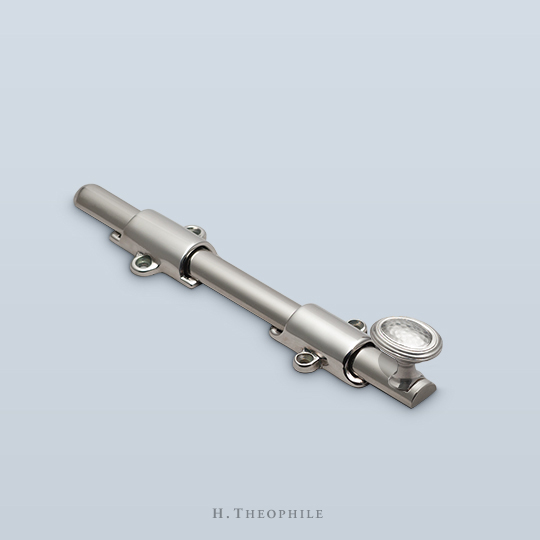

◀ Back to CatalogThe HT7012 is a decorative surface-mounted cane bolt, shown here with the HT9033h pull. It is typically mounted on the interior face of the door, locking into the header and/or the floor. Surface-mounted universal and mortise strike options are available. This cane bolt is available in standard and custom finishes. The HT9033h is available separately as a cabinet pull. Rod guide dimensions: 2-1/8" x 1-5/8" Throw: 1-1/8"
Available in all finishes.

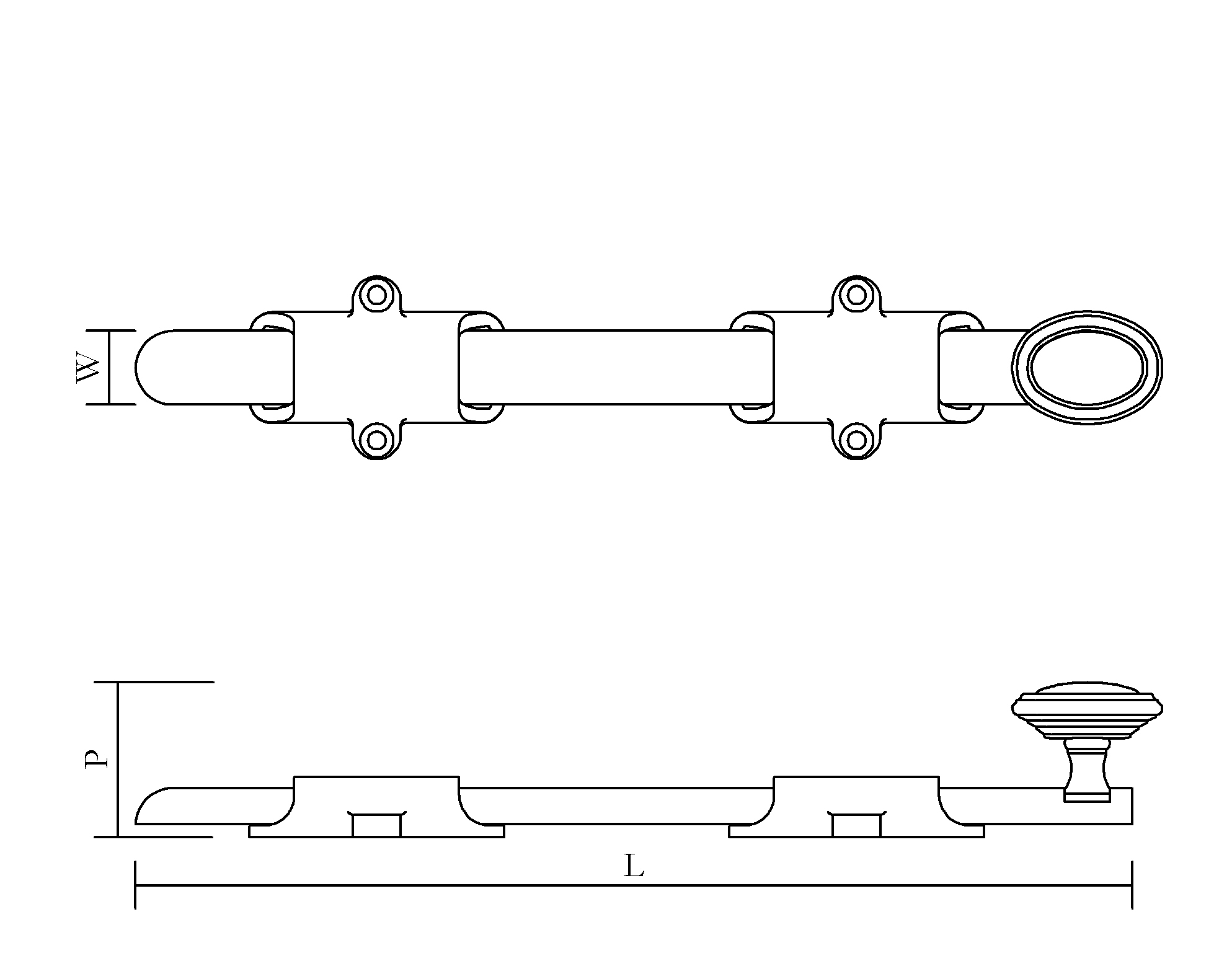

| BOLT L x W | PULL | PROJECTION |
|---|---|---|
| 8" x 5/8" | 1-1/4" x 15/16" | 1-5/16" |
| 12" x 5/8" | 1-1/4" x 15/16" | 1-5/16" |
