HT7024-HT9293

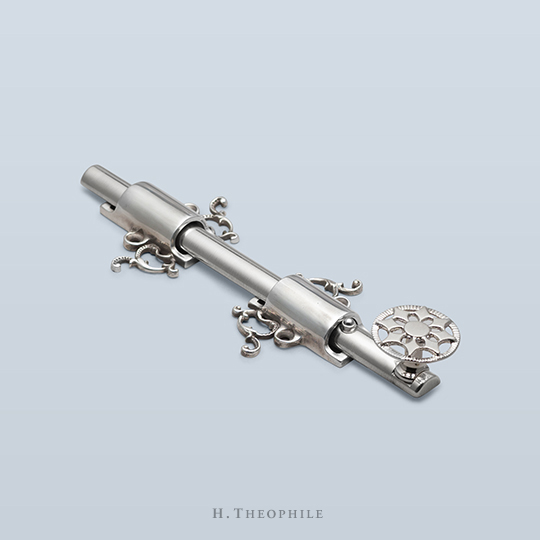

◀ Back to CatalogThe HT7024 is a decorative surface-mounted cane bolt, shown here with the HT9293 pull. It is typically mounted on the interior face of the door, locking into the header and/or the floor. Surface-mounted universal and mortise strike options are available. This cane bolt is available in standard and custom finishes. The HT9293 is available separately as a cabinet pull. Rod guide dimensions: 2-1/8" l. x 2-3/4" w. Throw: 1-1/8"
Available in all finishes.

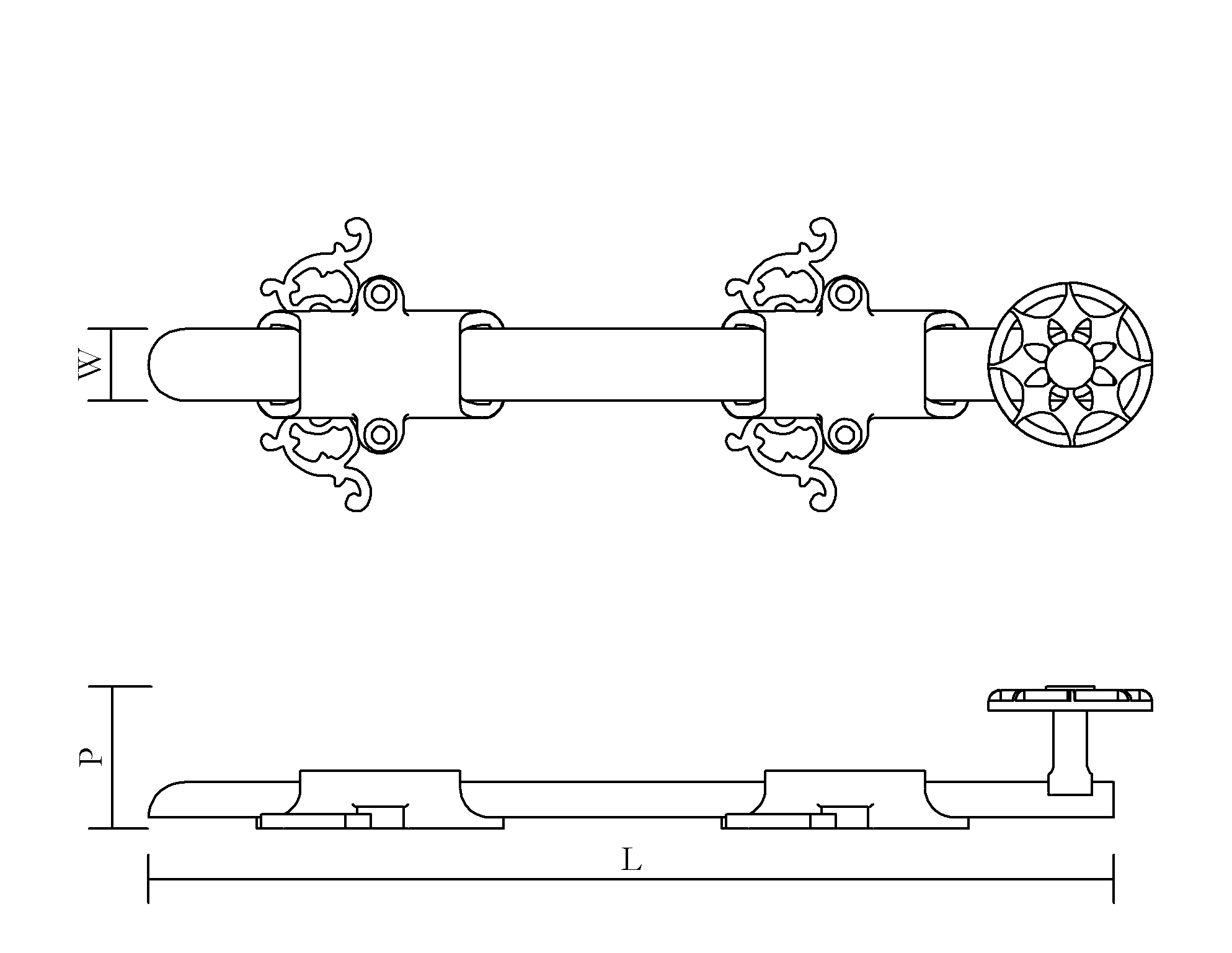

| BOLT L x W | PULL | PROJECTION (P) |
|---|---|---|
| 8" x 5/8" | 1-7/16" dia. | 1-1/8" |
| 12" x 5/8" | 1-7/16" dia. | 1-1/8" |
