HT7026

◀  Back to Catalog

The HT7026 flush bolt is typically used on the passive leaf of a double door. It is mounted on the leading edge of the door, shooting a bolt into either the header or floor, or both. A typical installation has two flush bolts per door leaf. It is available in standard and custom finishes. Multiple lengths are available; specify when ordering. Several strike options are available and specified to suit each specific application. Throw: 3/4" for the 4" bolt; 1" for the 6" bolt.

Available in all finishes.

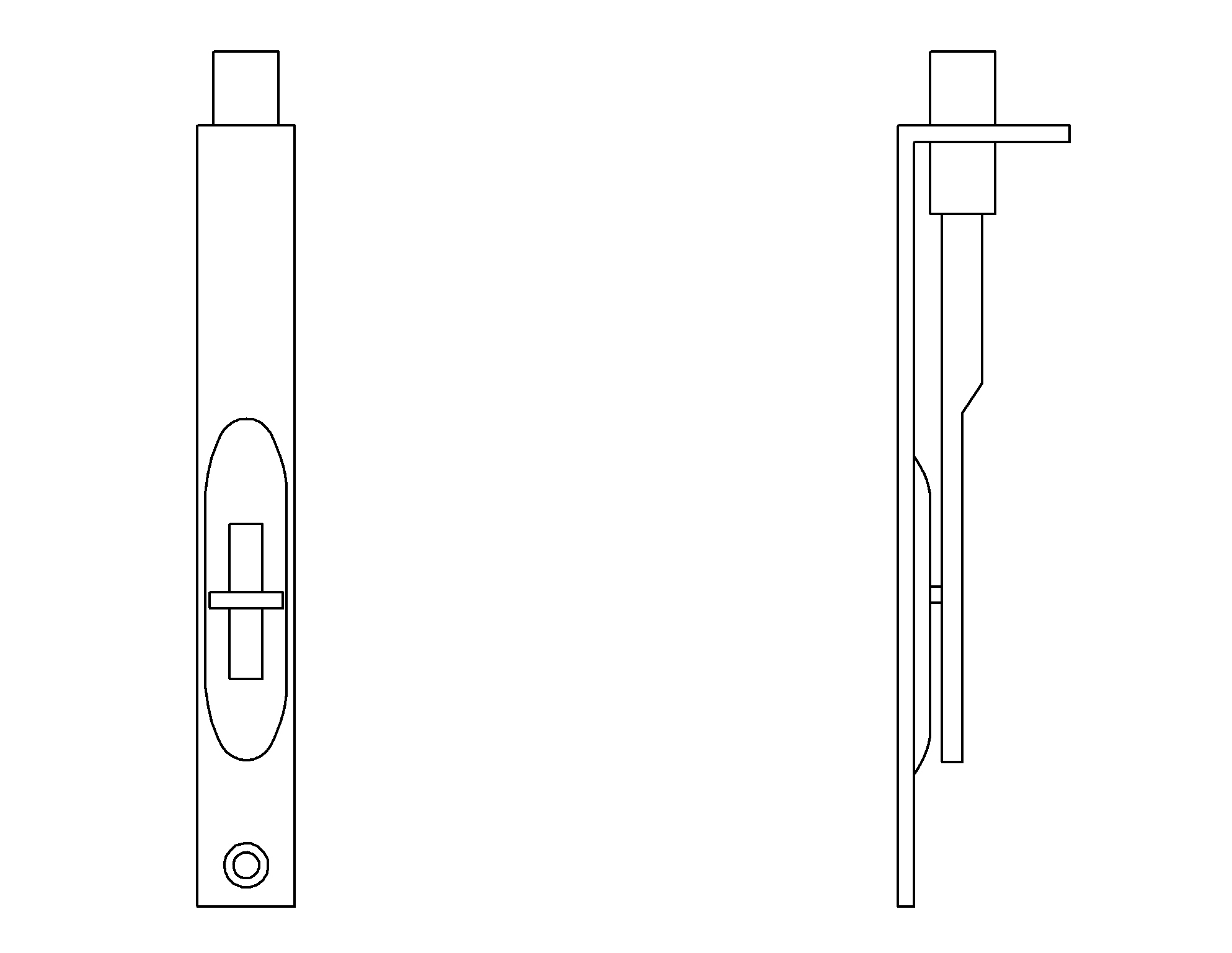

Diagram for HT7026
HEIGHTWIDTHDEPTH
4"3/4"1-1/8"
6"3/4"1-3/8"

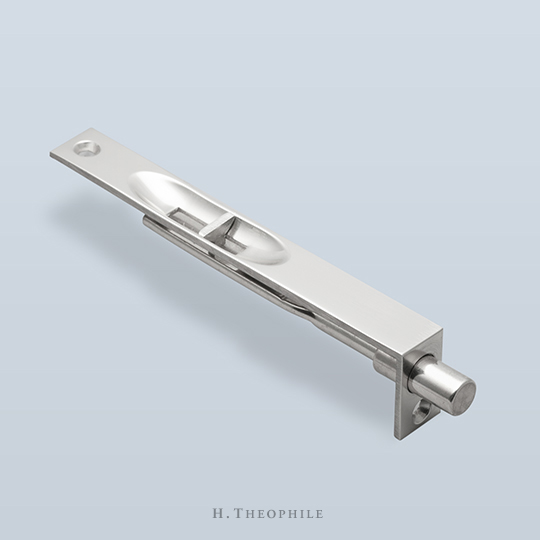

Flush bolt with push action
