HT7430

◀  Back to Catalog

The HT7430 heavy duty roller latch is used to hold dummy function swing doors in place when closed. It is available in standard and custom finishes. Its strike can be mounted on the top edge of the door facing inwards, or in the jamb header facing out.

Available in all finishes.

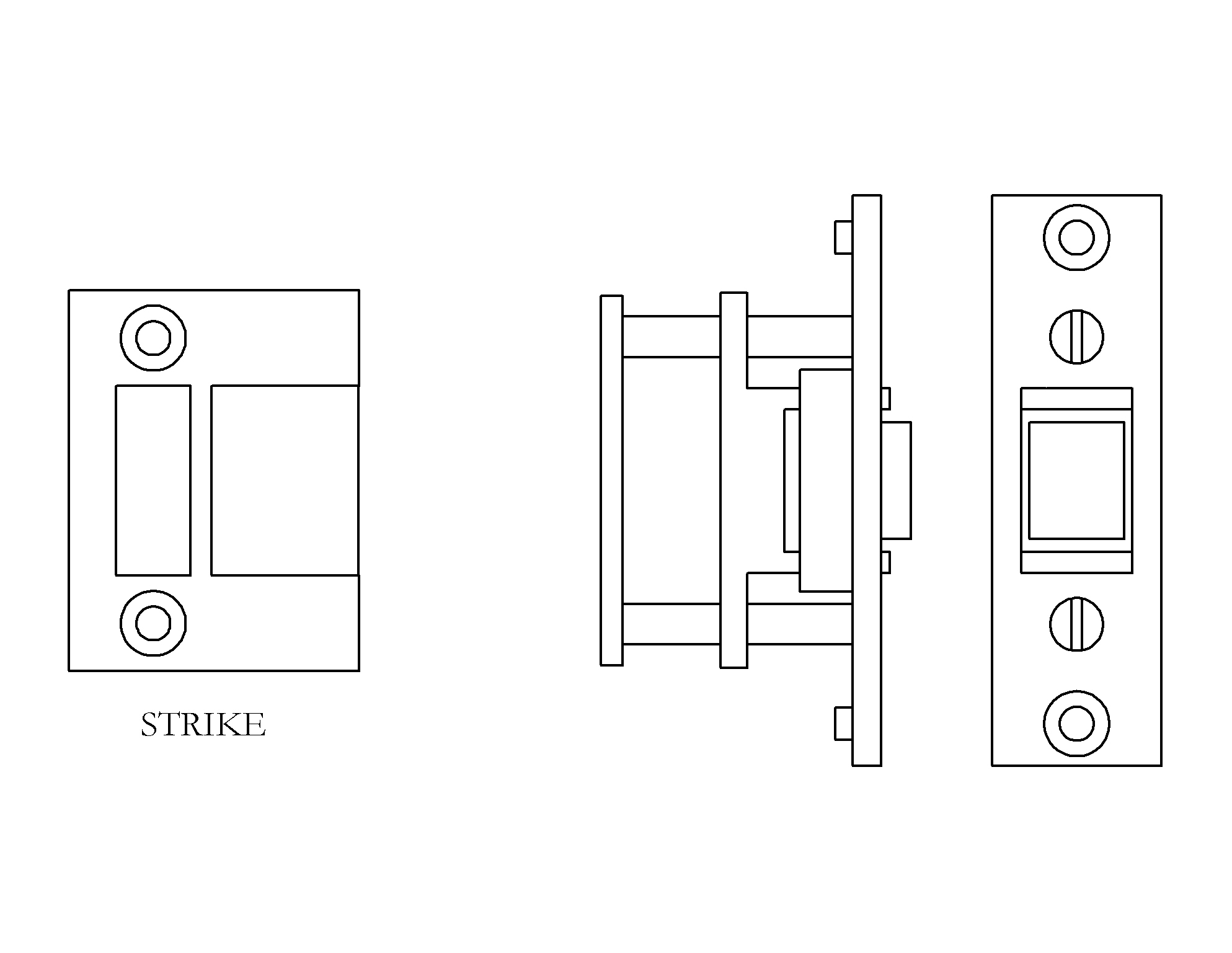

Diagram for HT7430
FACEPLATELATCH DEPTHSTRIKE PLATE
3-3/8" x 1"1-11/16"2-1/4" x 1-11/16"
Heavy-duty roller latch with strike plate
