HT7432

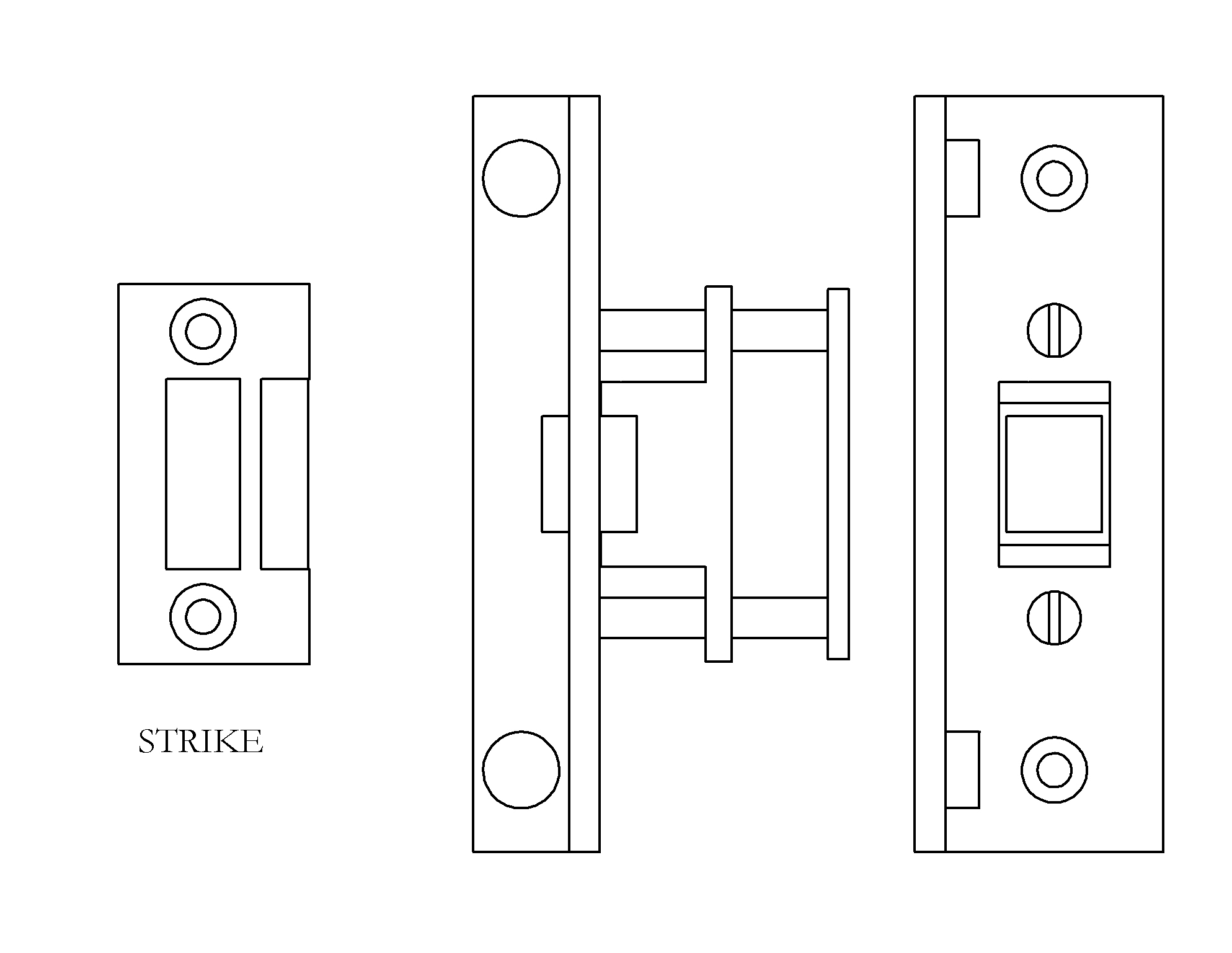

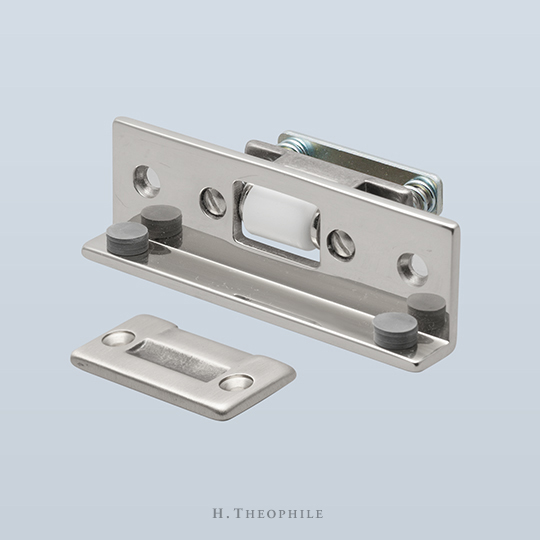

◀ Back to CatalogThe HT7432 combination heavy duty roller latch plus angle stop is used to hold dummy function swing doors in place when closed. The angle stop is helpful when a stop in the jamb is not present. It is available in standard and custom finishes. Angle projection: 3/4"
Available in all finishes.
| FACEPLATE | LATCH DEPTH | STRIKE PLATE |
|---|---|---|
| 4-1/2" x 1-1/2" | 1-3/4" | 2-1/4" x 1-1/8" |
