HT9285-HT2049

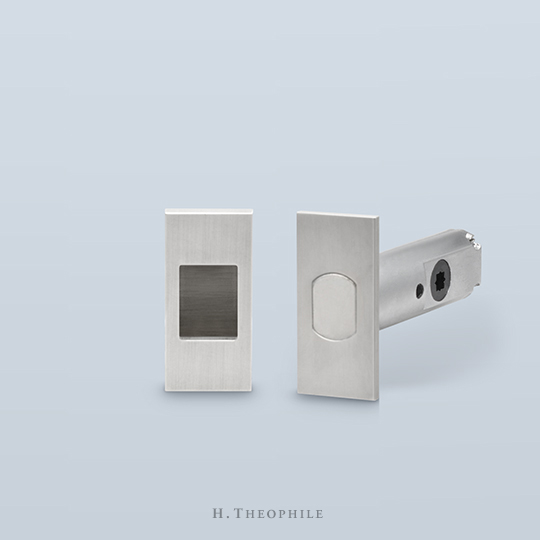

◀ Back to CatalogThe HT9285 tubular bolt offers the function of a standard deadbolt but with simpler door preparation than its mortise lockset counterpart. Shown here with the HT2049 armor and the HT2051 custom strike which both feature concealed screws. The strike is sized per door specifications. Both armor and strike are available in standard and custom finishes. Other custom backsets may be available upon request.
Available in all finishes.

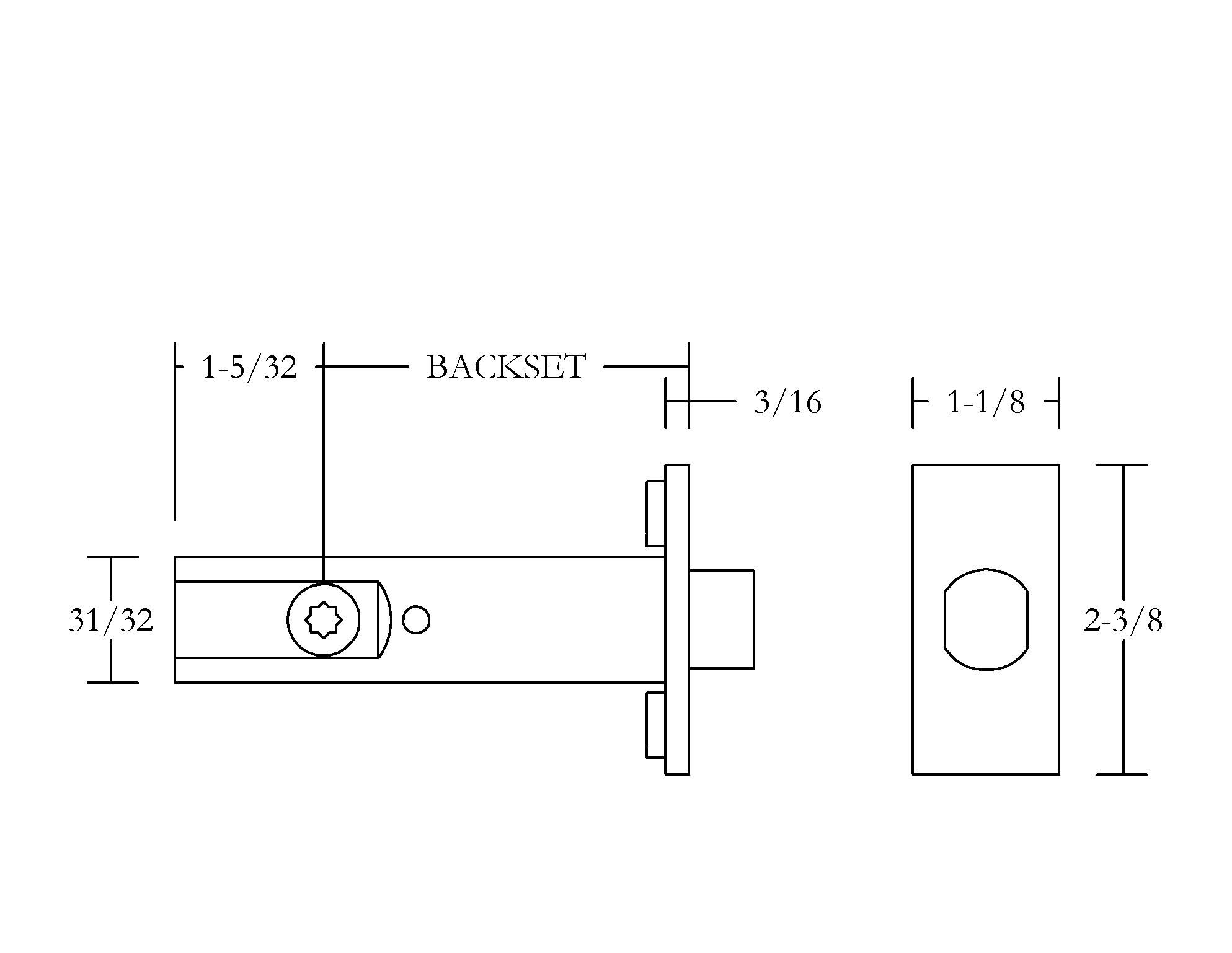

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2" | 3-1/8" | 1" |
| 2-3/8" | 3-1/2" | 1" |
| 2-3/4" | 3-7/8" | 1" |
