HT9297-HT2049

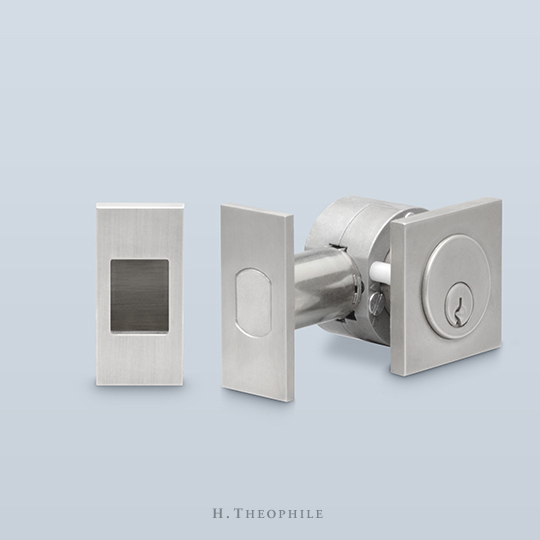

◀ Back to CatalogThe HT9297 is a tubular deadbolt that accepts a keyed mortise cylinder. It is paired here with the HT2049 armor front with concealed screws. Also shown is the HT2051 custom strike with concealed screws and the HT3101 square backplate, specified separately. The armor front and strike plate are available in standard and custom finishes.
Available in all finishes.

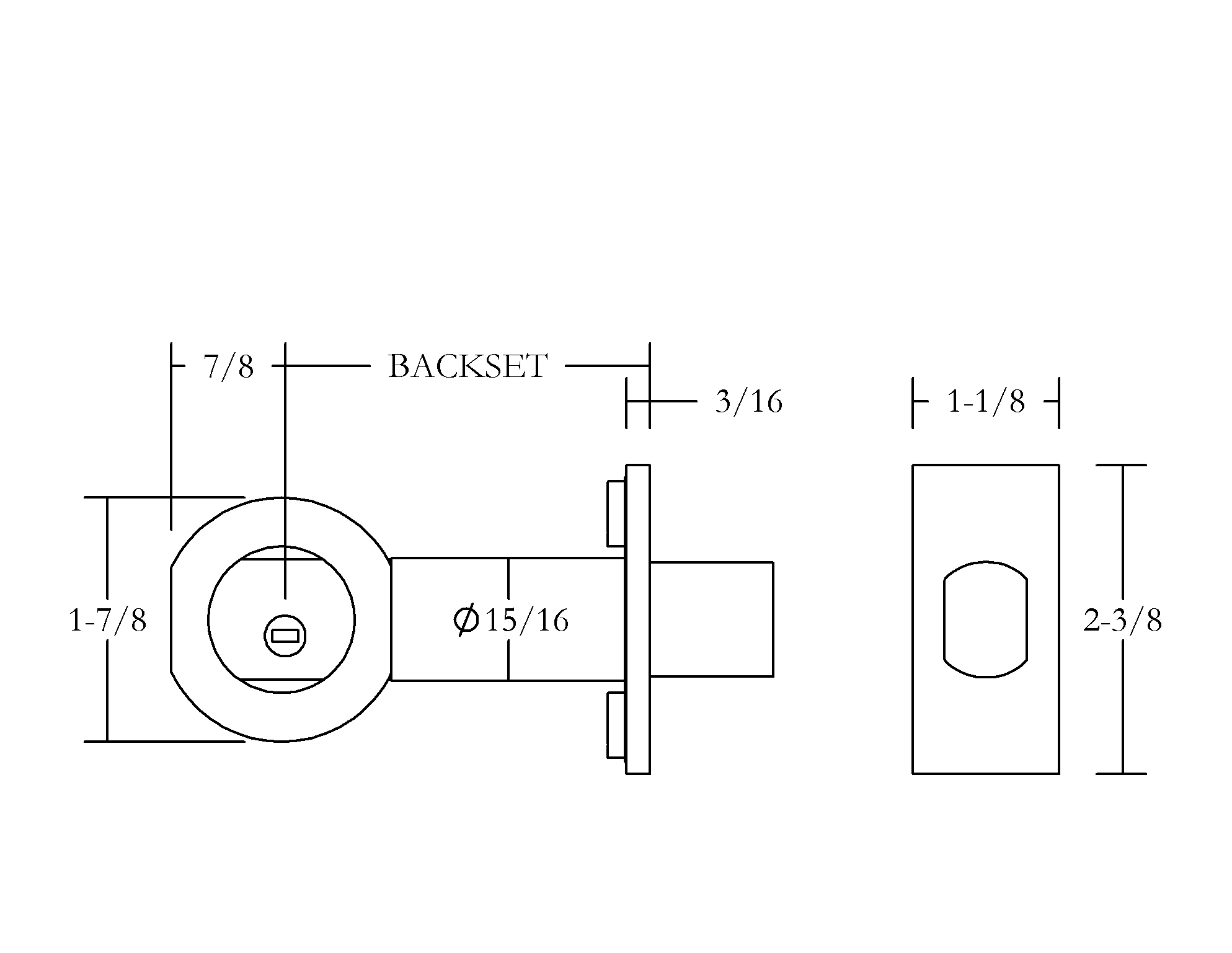

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2-3/8" | 3-1/4" | 1-1/8" |
| 2-3/4" | 3-5/8" | 1-1/8" |
