HA9139

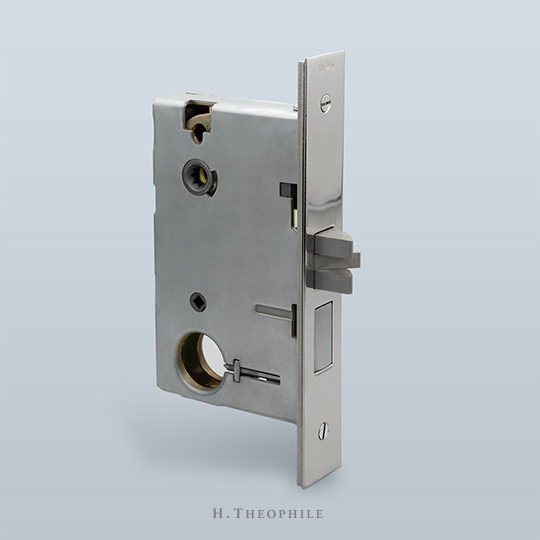

◀ Back to CatalogThe HA9139 heavy-duty privacy mortise lockset can be used with knobs and levers. The deadbolt is thrown by a thumbturn, and can be retracted by the thumbturn or the inside lever. UL-Listed 3 hour (R13846), Grade 1 certified to ANSI/BHMA, A156.13.2005 standard. Specify orientation as knob-above-thumbturn (as shown) or knob-below-thumbturn. Armor front features an adjustable bevel, and rabbet kits are available upon request.
Available in all finishes.

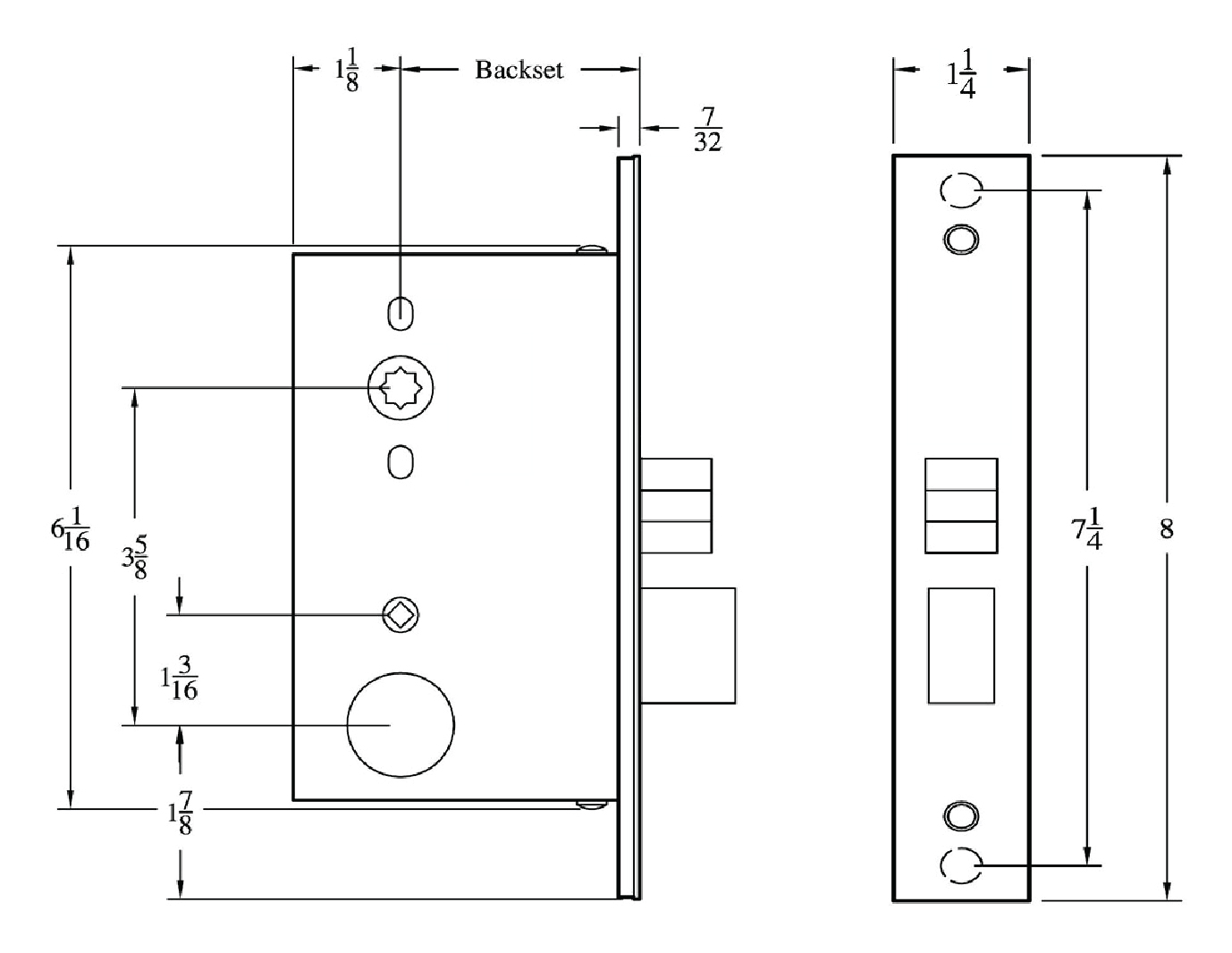

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2-1/2" | 3-5/8" | 15/16" |
| 2-3/4" | 3-7/8" | 15/16" |
| 3-3/4" | 4-7/8" | 15/16" |
| 5" | 6-1/8" | 15/16" |
| 6" | 7-1/8" | 15/16" |
