HA9503

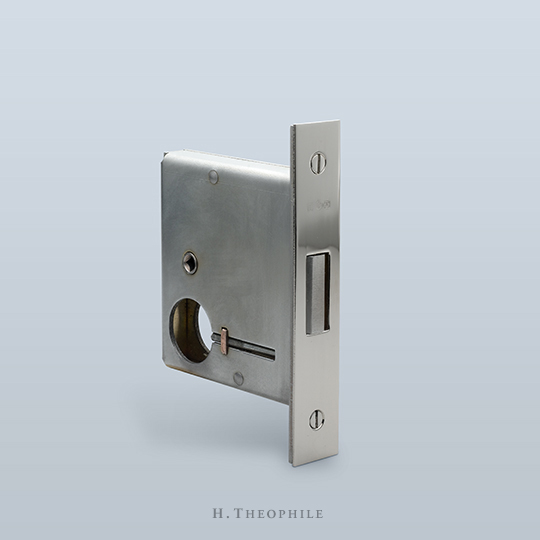

◀ Back to CatalogThe HA9503 mortise deadbolt is lockable by a thumbturn and a keyed mortise cylinder. UL-Listed 3 hour (R27779-20130717). Armor front features an adjustable bevel, and rabbet kits are available upon request.
Available in all finishes.

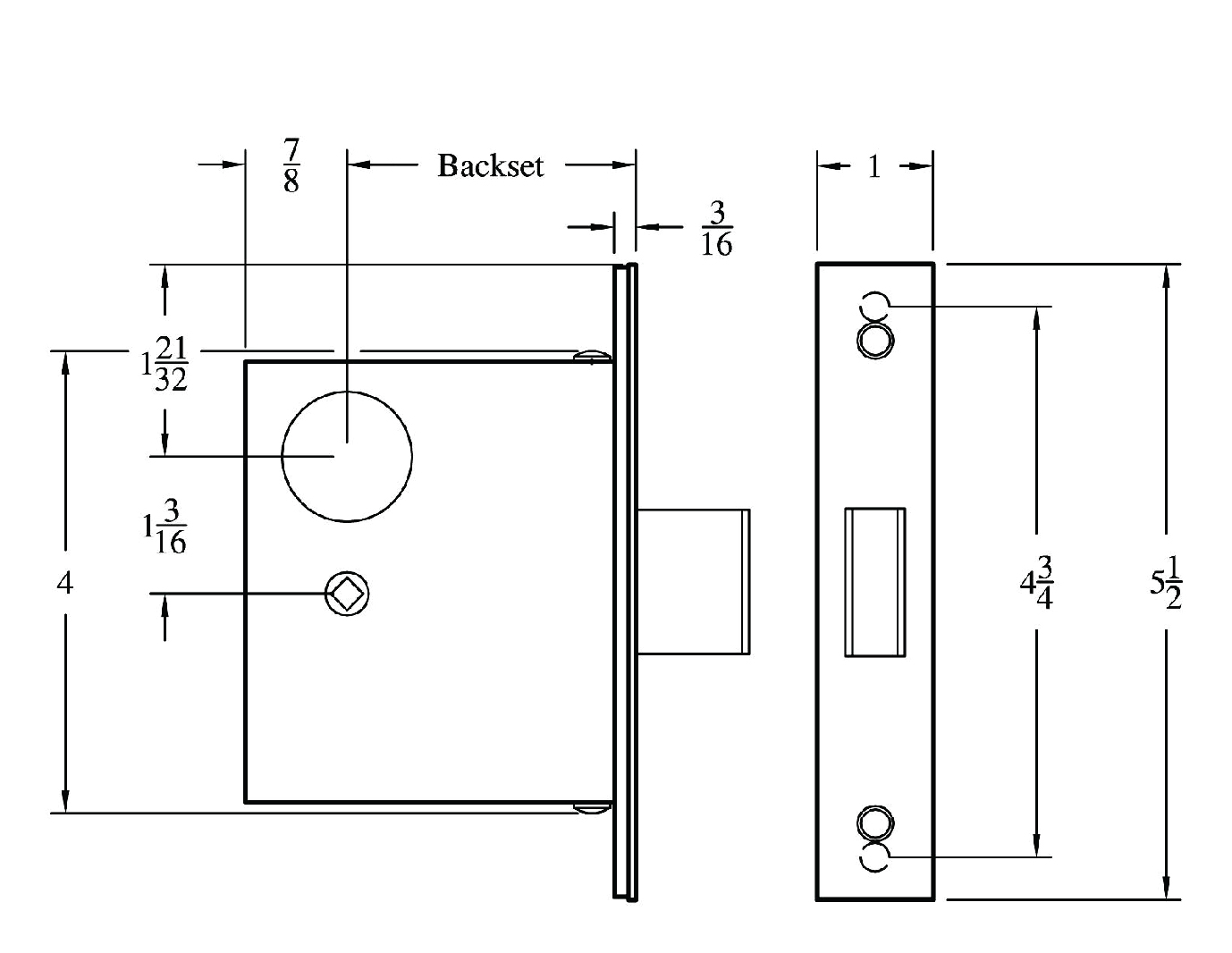

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2-1/2" | 3-3/8" | 3/4" |
| 2-3/4" | 3-5/8" | 3/4" |
| 3-3/4" | 4-5/8" | 3/4" |
| 5" | 5-7/8" | 3/4" |
| 6" | 6-7/8" | 3/4" |
