HT0221

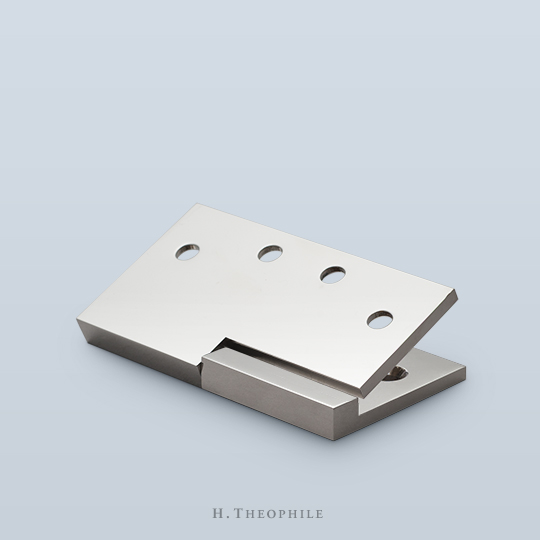

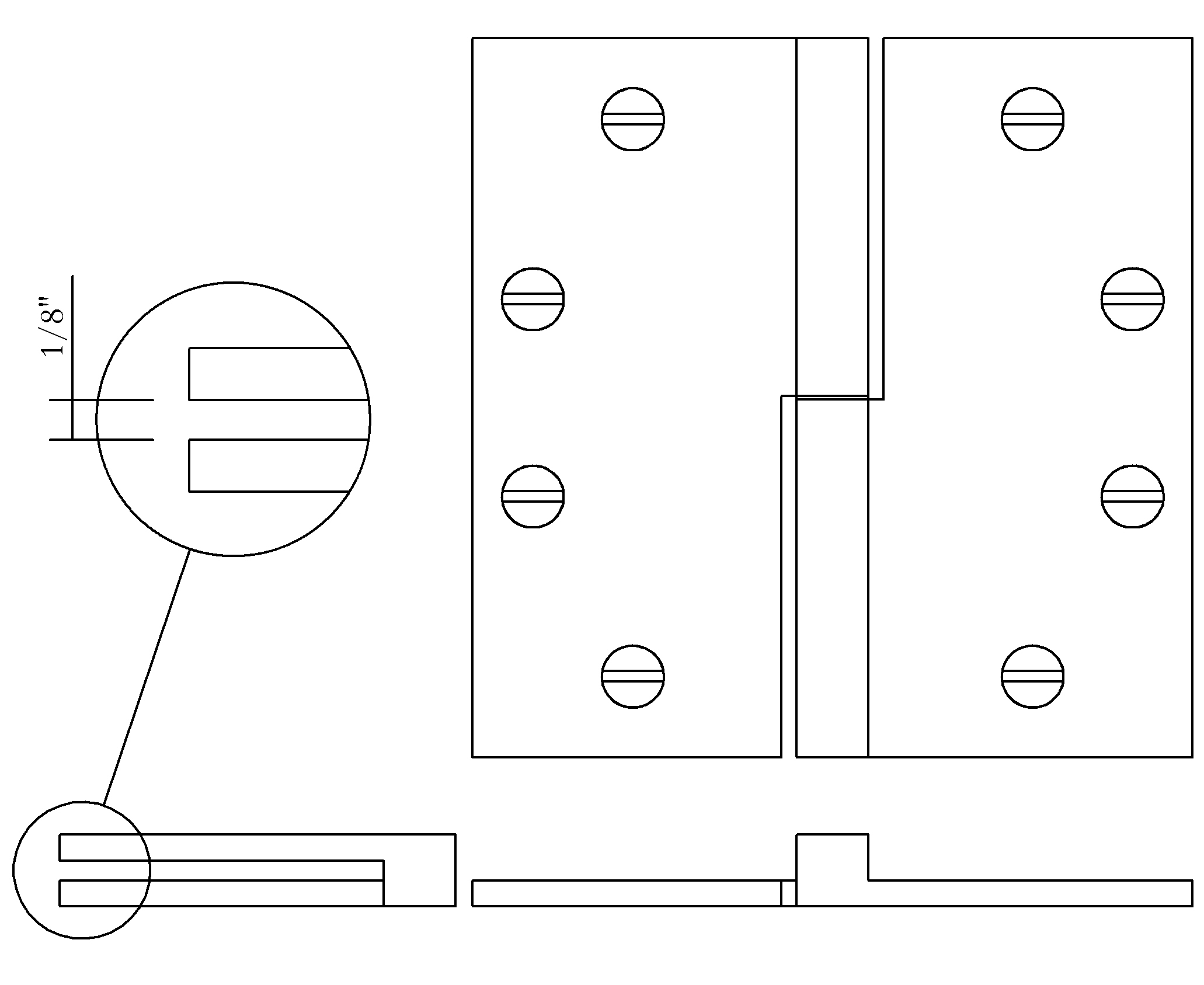

◀ Back to CatalogH. Theophile's HT0221 premium square paumelle lift-off hinge is engineered to sit squarely in door jamb reveals of 1/8". Features a fixed stainless steel pin and concealed bearings. See HT0248 for the standard square paumelle with a 0.040" gap between hinge leafs, a more economical option.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 3-1/2" | 3-1/2" | .4" | .138" |
| 4" | 4" | .4" | .138" |
| 4-1/2" | 4" | .45" | .163" |
| 4-1/2" | 4-1/2" | .45" | .163" |
| 5" | 4" | .45" | .163" |
| 5" | 4-1/2" | .45" | .163" |
| 5" | 5" | .45" | .163" |
