HT0223

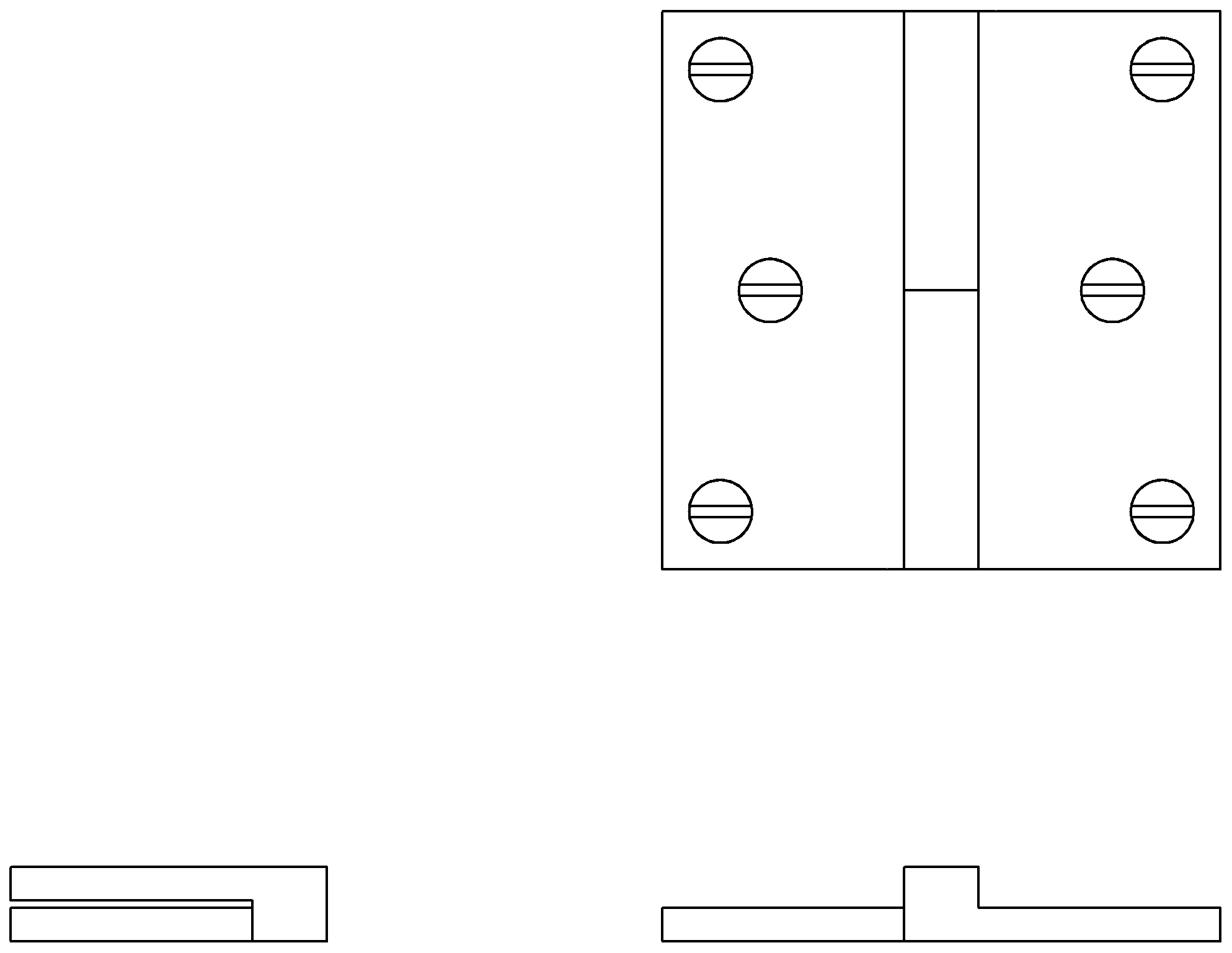

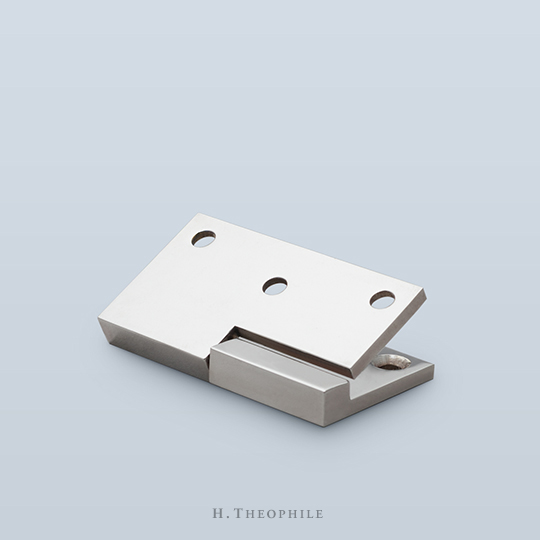

◀ Back to CatalogThe HT0223 square paumelle is a premium lift-off cabinet hinge manufactured from solid brass with a fixed stainless steel pin.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 1-1/2" | 1-1/2" | .281" | .109" |
| 2" | 1-1/2" | .281" | .109" |
| 2" | 1-3/4" | .281" | .109" |
| 2" | 2" | .281" | .109" |
| 2-1/2" | 1-3/4" | .281" | .109" |
| 2-1/2" | 2" | .281" | .109" |
| 2-1/2" | 2-1/2" | .281" | .109" |
| 3" | 2" | .281" | .109" |
| 3" | 2-1/2" | .281" | .109" |
| 3" | 3" | .4" | .18" |
