HT9284-HT2049

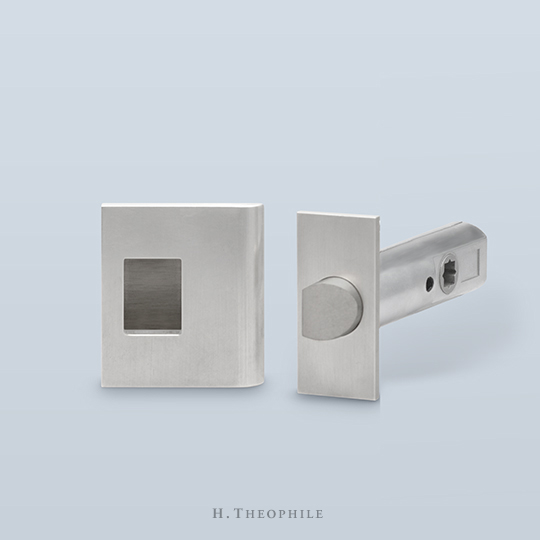

◀ Back to CatalogThe HT9284 tubular latch offers the function of a standard passage latch but with simpler door preparation than its mortise lockset counterpart. It is not intended for use with heavy knobs and levers unless an auxiliary spring is specified. Shown here with the HT2049 armor and the HT2050 custom strike which both feature concealed screws. The strike is sized per door specifications. Both armor and strike are available in standard and custom finishes. Other custom backsets may be available upon request.
Available in all finishes.

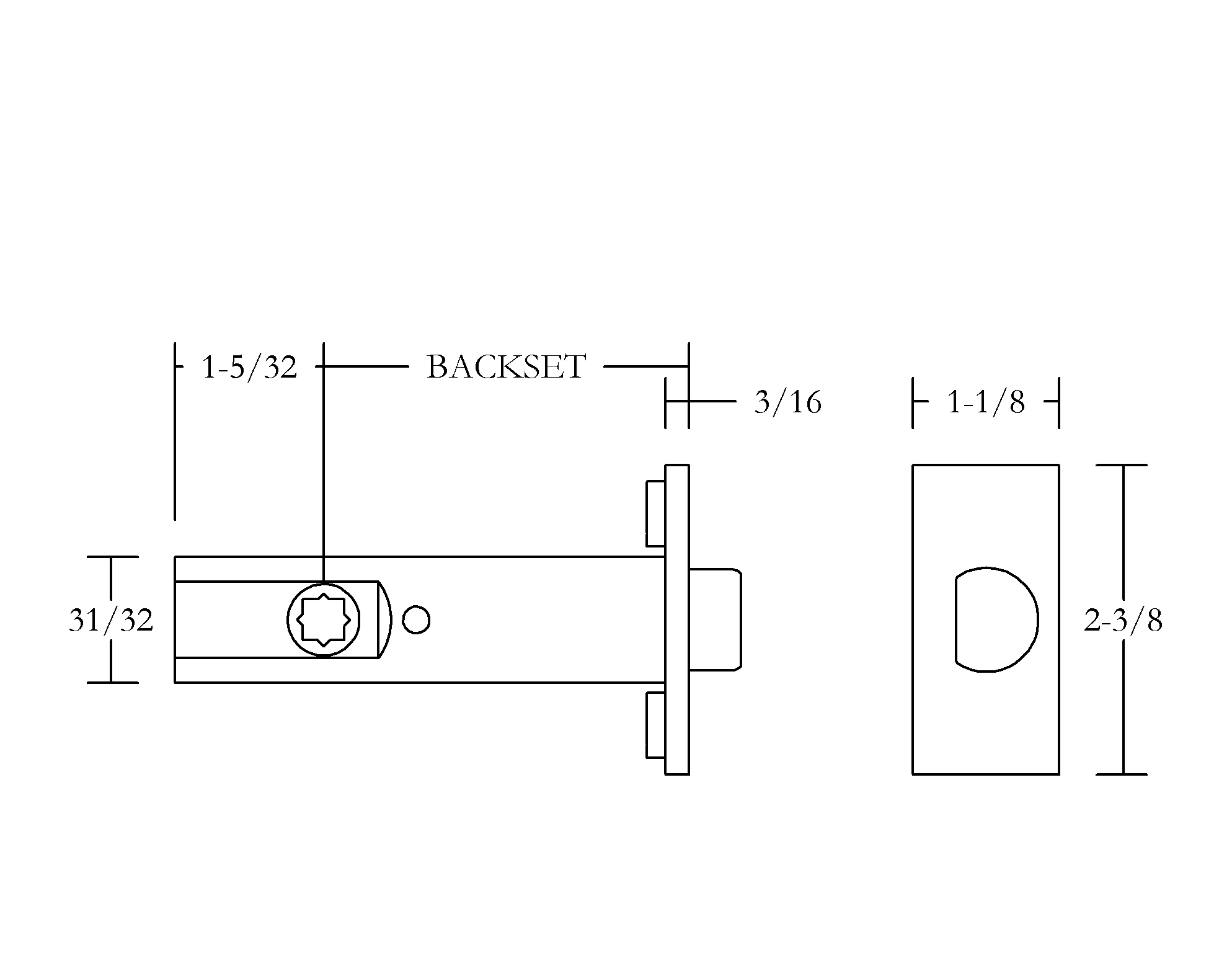

| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 2-3/8" | 3-1/2" | 1" |
| 2-3/4" | 3-7/8" | 1" |
